This motor is suitable for unit heaters, condensers, furnace blowers, air circulators, fans, and a wide range of other shaft-mounted fan and blower equipment.

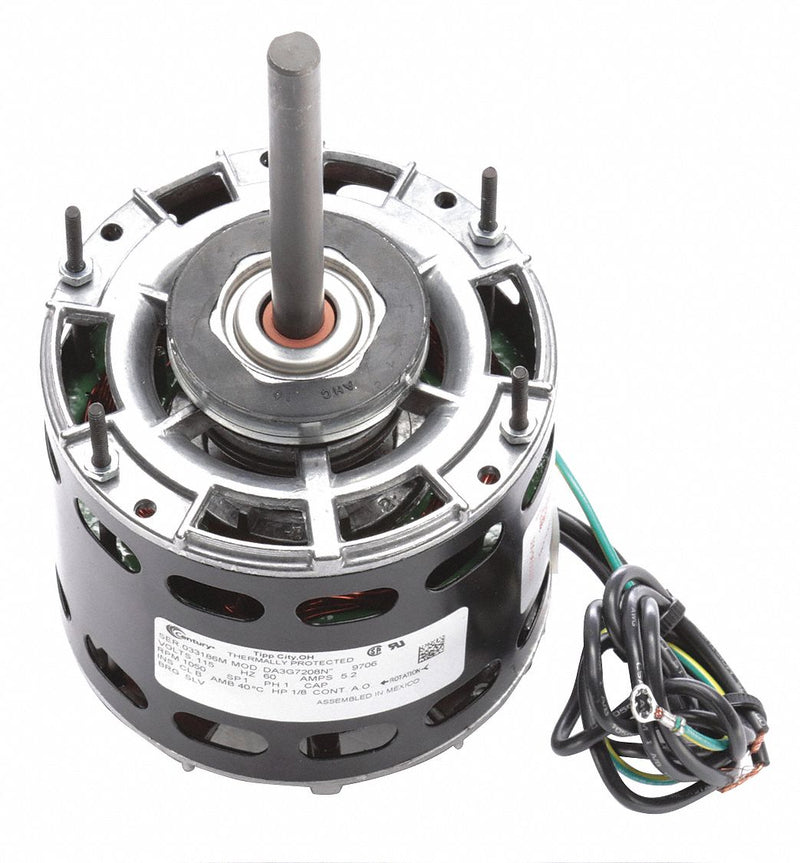

| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/8 |
| Nameplate RPM | 1050 |
| Voltage | 115 |
| Full Load Amps | 5.2 |
| Hz | 60 |
| Phase | 1 |
| Frame | 42Y |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 1 |
| Motor Mounting Type | Ring |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Sleeve |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CCWLE |
| Body Dia. | 5 in |
| Length Less Shaft | 5 3/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 4 in |
| Motor Shaft Design | Flat |
| Capacitor Required | No |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 4 13/16 in |
| Mounting Stud Location | Shaft End |
| Mounting Stud Pattern | 2-5/16 in x 4 in |
| Stud Size | #8-32 |
| Bolt Circle Dia. | 4 5/8 in |
| Standards | CSA Certified, UL Recognized |
| Application | A Wide Range of Other Shaft Mounted Fan and Blower Equipment, Condensers, Furnace Blowers, Room Air Conditioners, Unit Heaters |
| Includes | Resilient Mounting Rings |
| Voltage Compatibility | 115, 12 |
