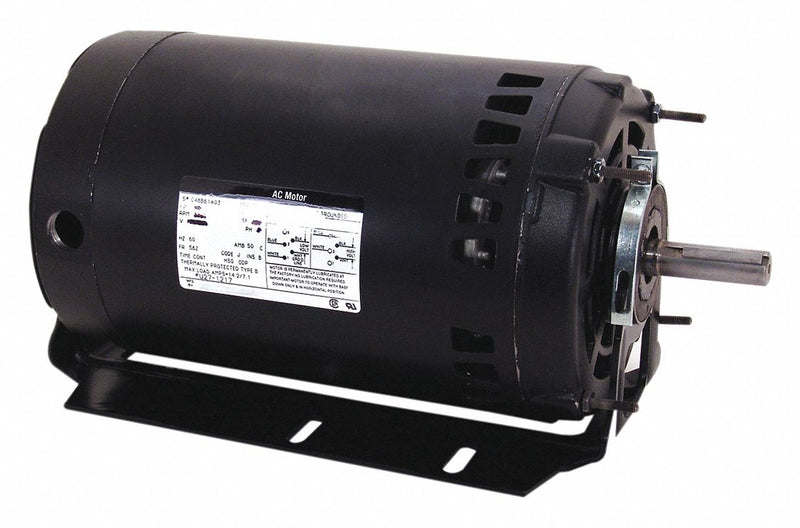

Century 1 1/2 HP Belt Drive Motor, 3-Phase, 3450 Nameplate RPM, 200-230/460 Voltage, Frame 56H - H843V1

CenturySKU: C1561067
MPN : H843V1
Weight : 31.7 lb

filler

Price:
$332.51 $405.51

Availability : Usually Ships in 1-2 Business Days

Designed to be used with pumps, industrial fans, blowers, and exhaust fans.

ItemBelt Drive Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Design3-Phase
HP1 1/2
No. of Speeds1
Nameplate RPM3450
Voltage200-230/460
Frame56H
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeCradle Base
Motor Mounting PositionAll Angle
Hz60
Full Load Amps4.7-4.6/2.3
Motor Thermal ProtectionAuto
Ins. ClassB
Motor Service Factor1.3
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft11 1/16 in
Overall Length12 15/16 in
Body Dia.6 1/2 in
Mounting Stud Pattern4-1/8 in x 4-1/8 in
Nominal Efficiency79.6 %
DutyContinuous
Phase3
StandardsCSA Certified, UL Recognized
Voltage Compatibility200, 200-230, 200-230/440, 200-230/460, 208, 208-230/460, 220/460, 230, 230/460, 240, 460
