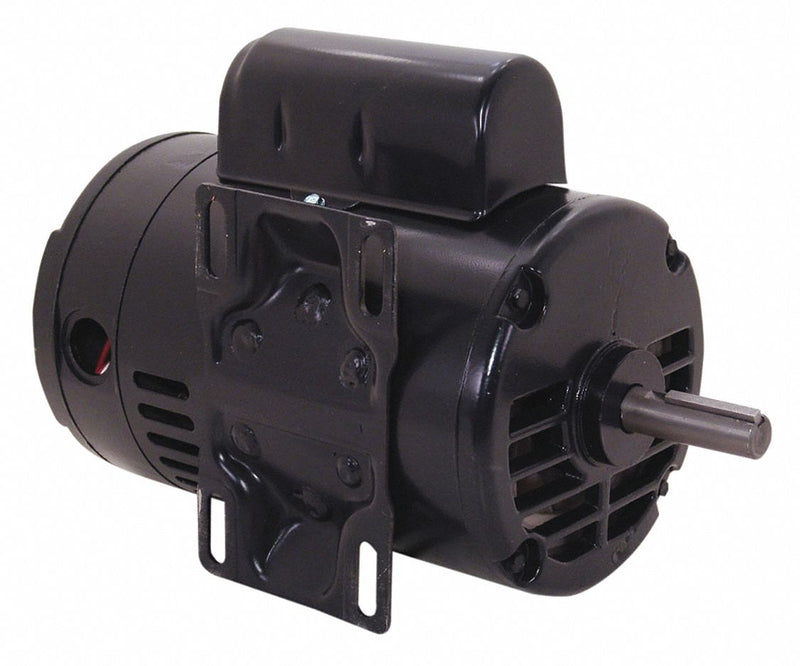

OEM Replacement Brand: Arkia, Tappan & SJC; Item: Direct Drive Motor; Motor Design: Capacitor-Start; Phase: 1; HP: 1/2; No. of Speeds: 1; Voltage: 115/230; Motor Shaft Rotation: CW/CCW; Frame: 48Z; Motor Enclosure Design: Open Dripproof; Motor Mounting Type: Rigid Base; Shaft Dia.: 5/8 in; Shaft Length: 1 1/2 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 3450; Motor Application: OEM Replacement; Motor Sub Application: Direct Drive Fan/Blower; Full Load Amps: 8.4/4.2; Hz: 60; Ins. Class: A; Max. Ambient Temp.: 40 Degrees C; Motor Service Factor: 1.25; Motor Bearings: Ball; Body Dia.: 5 5/8 in; Length Less Shaft: 9 in; Overall Length: 10 1/2 in; Capacitor Required: Yes; Replacement For: 14505-275; Application: Arkla Gas Fired A/C; Standards: CSA Certified
| OEM Replacement Brand | Arkia, Tappan & SJC |
| Item | Direct Drive Motor |
| Motor Design | Capacitor-Start |
| Phase | 1 |
| HP | 1/2 |
| No. of Speeds | 1 |
| Voltage | 115/230 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Z |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 1/2 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 3450 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Direct Drive Fan/Blower |
| Full Load Amps | 8.4/4.2 |
| Hz | 60 |
| Ins. Class | A |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Body Dia. | 5 5/8 in |
| Length Less Shaft | 9 in |
| Overall Length | 10 1/2 in |
| Capacitor Required | Yes |
| Replacement For | 14505-275 |
| Application | Arkla Gas Fired A/C |
| Standards | CSA Certified |
