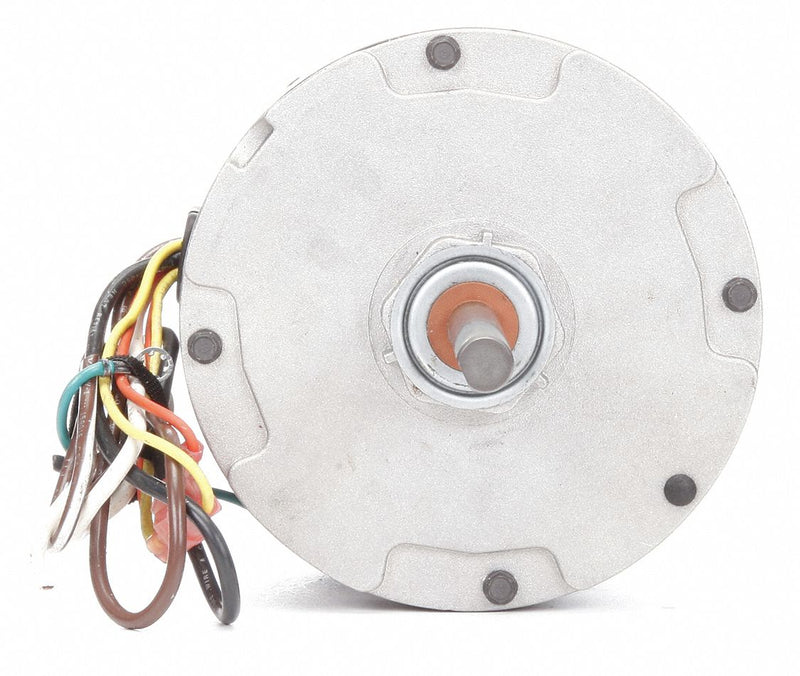

Use as an OEM replacement motor in Rheem Ruud brand fans and blowers.
| OEM Replacement Brand | Rheem/Ruud |
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/5 |
| No. of Speeds | 1 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48Y |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 1/2 in |
| Shaft Length | 3 3/4 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1075 |
| Motor Application | OEM Replacement |
| Full Load Amps | 1.4-1.4 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Body Dia. | 5 5/8 in |
| Length Less Shaft | 3 7/8 in |
| Overall Length | 7 5/8 in |
| Bolt Circle Dia. | 5 3/16 in |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Capacitor Required | 2MDV2 |
| Replacement For | 51-20681-01 |
| Application | Rheem Ruud |
| Standards | CSA Certified, UL Recognized |
