Availability : Usually Ships in 3-5 Business Days
Use as an OEM replacement motor in Hussman brand fans and blowers.
OEM Replacement Brand | Copeland |

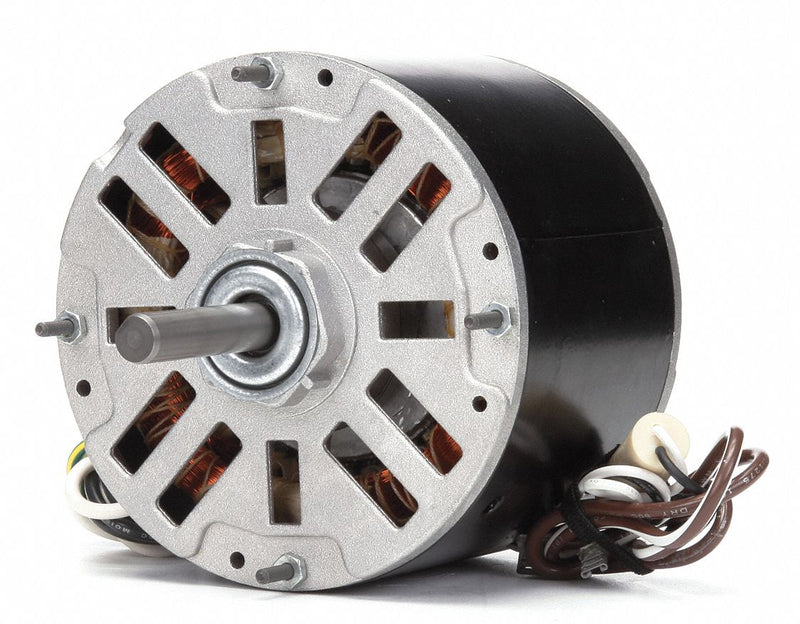

Item | Condenser Fan Motor |
Motor Design | Permanent Split Capacitor |
Phase | 1 |
HP | 1/6 |
No. of Speeds | 1 |
Voltage | 208-230 |
Motor Shaft Rotation | CW/CCW |
Frame | 48Y |
Motor Enclosure Design | Open Air-Over |
Motor Mounting Type | Stud |
Shaft Dia. | 1/2 in |
Shaft Length | 2 1/2 in |
Number of Shafts | 1 |
Motor Thermal Protection | Auto |
Nameplate RPM | 1625 |
Motor Application | OEM Replacement |
Full Load Amps | 1 |
Hz | 60 |
Ins. Class | B |
Max. Ambient Temp. | 60 Degrees C |
Motor Service Factor | 1 |
Body Dia. | 5 5/8 in |
Length Less Shaft | 5 in |
Overall Length | 7 1/2 in |
Bolt Circle Dia. | 5 3/16 in |
Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
Stud Size | #8-32 |
Capacitor Required | 2MDV4 |
Replacement For | 050-0103-00 |
Application | Hussman |
