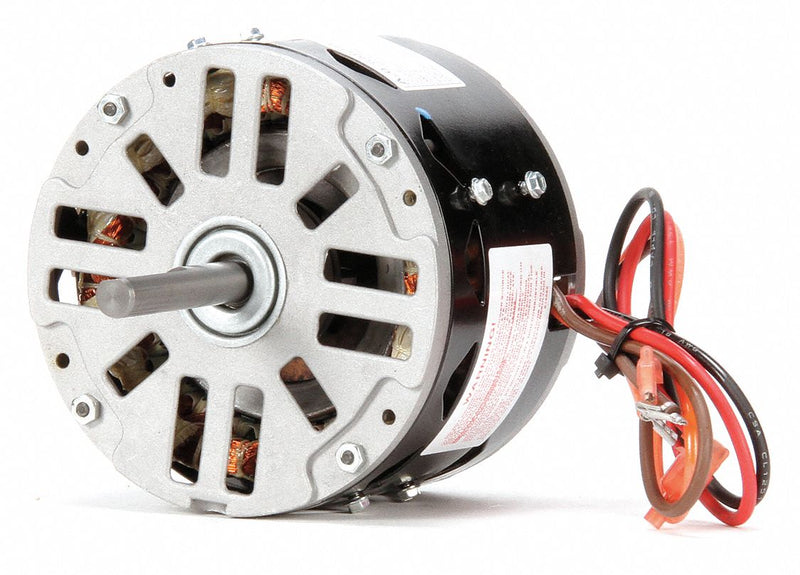

Use as an OEM replacement motor in Rheem Ruud brand fans and blowers.
| OEM Replacement Brand | Rheem/Ruud |
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/8 |
| No. of Speeds | 2 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CCWLE |
| Frame | 48Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Band |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 11/16 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 825 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Condenser Fan |
| Full Load Amps | 1.4 |
| Hz | 60/50 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Body Dia. | 5 5/8 in |
| Length Less Shaft | 3 7/8 in |
| Overall Length | 6 9/16 in |
| Capacitor Required | 2MDV4 |
| Replacement For | 51-23101-05 |
| Application | Rheem Ruud |
| Standards | CSA Certified, UL Recognized |
