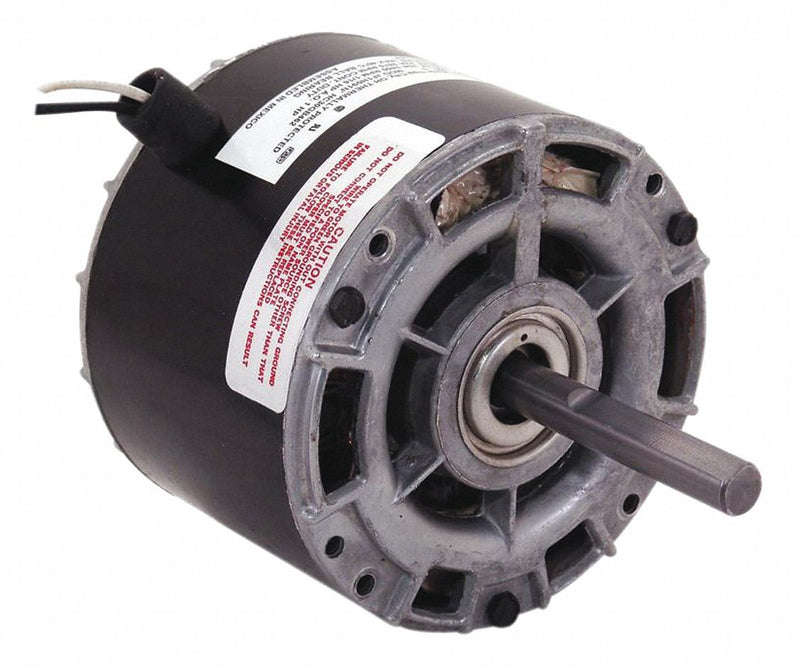

Use as an OEM replacement motor in Broan brand fans and blowers.
| OEM Replacement Brand | Broan |
| Item | Direct Drive Motor |
| Motor Design | Shaded Pole |
| Phase | 1 |
| HP | 1/12 |
| No. of Speeds | 1 |
| Voltage | 115 |
| Motor Shaft Rotation | CCWLE |
| Frame | 42Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Band |
| Shaft Dia. | 1/2 in |
| Shaft Length | 3 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1000 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Direct Drive Fan/Blower |
| Full Load Amps | 3.7 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Body Dia. | 5 in |
| Length Less Shaft | 3 1/2 in |
| Overall Length | 6 1/2 in |
| Capacitor Required | No |
| Replacement For | 99080237 |
| Application | Broan |
| Standards | CSA Certified, UL Recognized |
