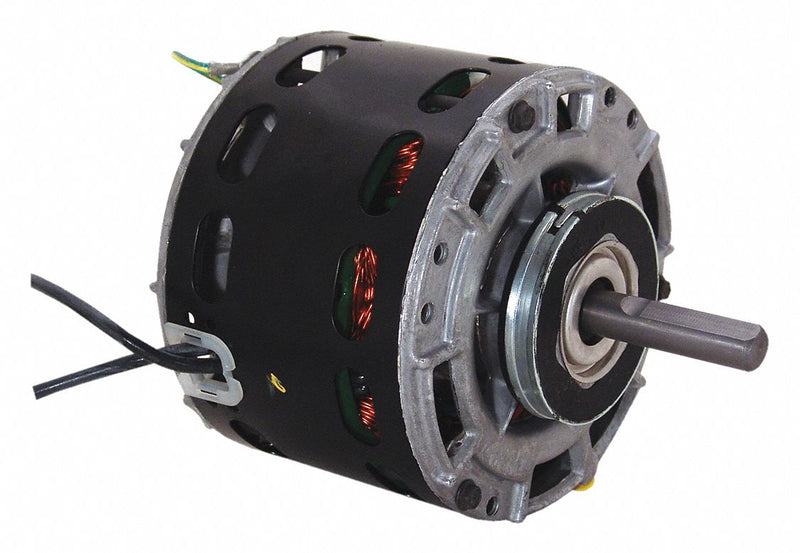

This motor is suitable for unit heaters, condensers, furnace blowers, air circulators, fans, and a wide range of other shaft-mounted fan and blower equipment.
| OEM Replacement Brand | Lear Siegler |
| Item | Direct Drive Motor |
| Motor Design | Shaded Pole |
| Phase | 1 |
| HP | 1/8 |
| No. of Speeds | 1 |
| Voltage | 115 |
| Motor Shaft Rotation | CWSE |
| Frame | 42Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Ring |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 3/8 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1050 |
| Motor Application | OEM Replacement |
| Motor Sub Application | Direct Drive Fan/Blower |
| Full Load Amps | 4.2 |
| Hz | 60 |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Body Dia. | 5 in |
| Length Less Shaft | 4 11/16 in |
| Overall Length | 7 1/16 in |
| Capacitor Required | No |
| Application | Furnace Blower Motor |
| Standards | CSA Certified, UL Recognized |
