- Features: 40 degree C ambient
REPLACED AS CENTURY OB3204ES

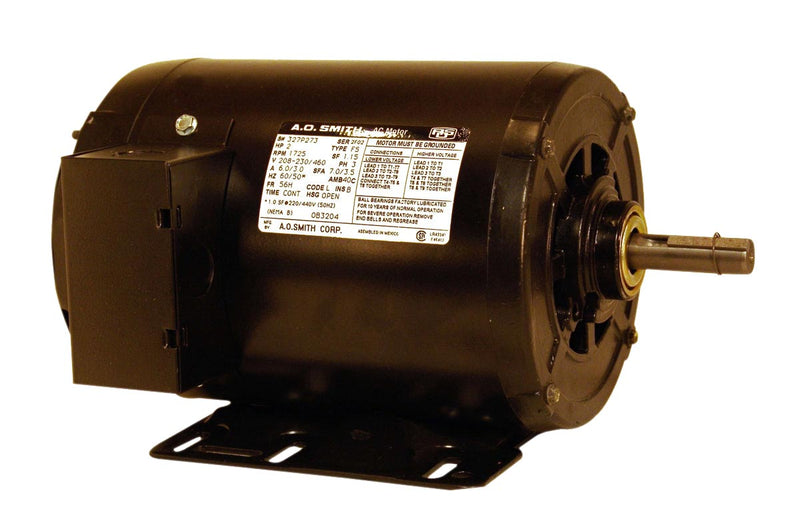

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 2, Nameplate RPM: 1725, Voltage: 208-230/460, Frame: 56H, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 50, 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 12.3, Protection: None, Thermal Protection: No, Cooling: Ambient, Efficiency: 78.
| Item | General Purpose AC Motor |
| Motor Type | 3-Phase |
| HP | 2 |
| Nameplate RPM | 1725 |
| Voltage | 208-230/460 |
| Frame | 56H |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 50, 60 |
| Phase | 3 |
| Speeds | 1 |
| Service Factor | 1.15 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.625" |
| "C" Dim | 12.3 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Ambient |
| Efficiency | 78 |
