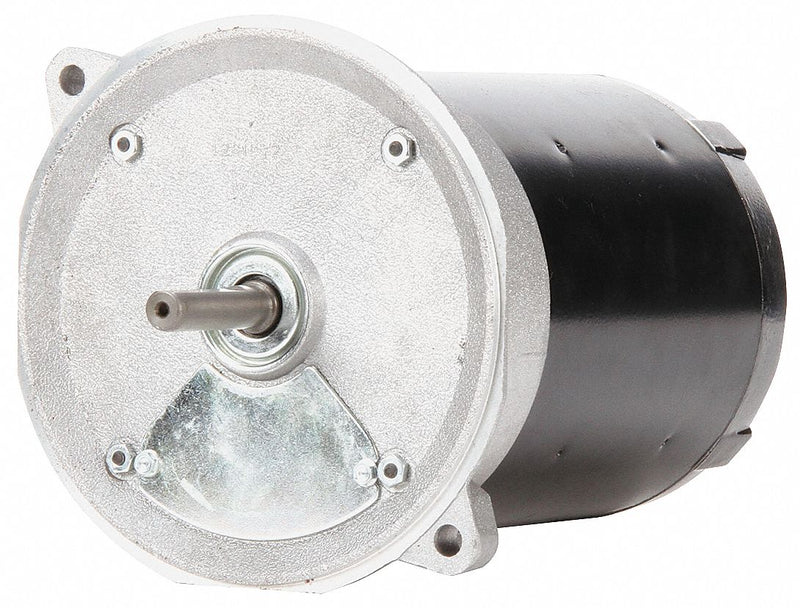

This CENTURY NEMA oil burner motor comes with a flange for direct coupling to domestic oil burners. Features quick-change reversing terminals.
| Item | Oil Burner Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Oil Burner |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/3 |
| Nameplate RPM | 1725 |
| Frame | 48N |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 4.3 |
| Motor Mounting Type | Face |
| Motor Thermal Protection | Manual |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Ambient Temperature | 40 Degrees C |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 7/8 in |
| Motor Flange Material | Aluminum |
| Motor Flange Type | Non-Ventilated |
| Standards | CSA Certified (LR43341), UL Recognized (E46412/E25022) |
| Voltage Compatibility | 115, 120 |
