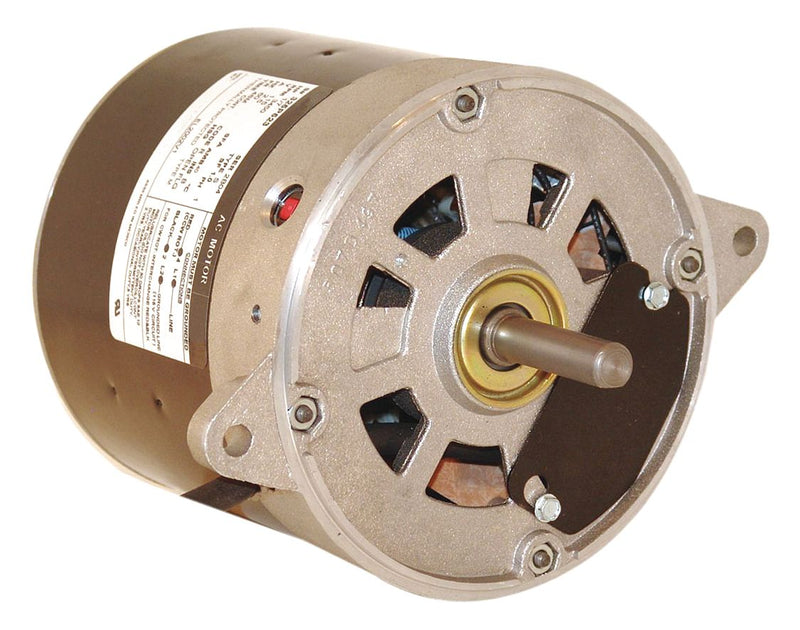

Oil Burner Motor, Motor Application HVAC/R, Motor Sub Application Oil Burner, Motor Type Split-Phase, Enclosure Totally Enclosed, HP 1/7, Nameplate RPM 3450, Frame 48M, Voltage 115, Hz 60, Phase 1, Full Load Amps 2.0, Mounting Flange, Thermal Protection Manual, Insulation Class B, Service Factor 1.0, Bearings Sleeve, Ambient Temperature 40 Degrees C, Rotation CW, Shaft Dia. 1/2", Shaft Length 1-13/16", Flange Material Aluminum, Flange Type Ventilated, RPM Range 3001-3600, Standards UL Recognized (E46412/E25022), CSA Certified (LR43341), Features 20" L Power Cable at 1:00
| Item | Oil Burner Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Oil Burner |
| Motor Type | Split-Phase |
| Enclosure | Totally Enclosed |
| HP | 1/7 |
| Nameplate RPM | 3450 |
| Frame | 48M |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 2.0 |
| Mounting | Flange |
| Thermal Protection | Manual |
| Insulation Class | B |
| Service Factor | 1.0 |
| Bearings | Sleeve |
| Ambient Temperature | 40 Degrees C |
| Rotation | CW |
| Shaft Dia. | 1/2" |
| Shaft Length | 1-13/16" |
| Flange Material | Aluminum |
| Flange Type | Ventilated |
| RPM Range | 3001-3600 |
| Standards | UL Recognized (E46412/E25022), CSA Certified (LR43341) |
| Features | 00 |
| UNSPSC | 26101611 |
