- Features: Manual protector, 7-1/4" bolt circle, External rotation switch, Open shaft end, Terminal board, Cap start

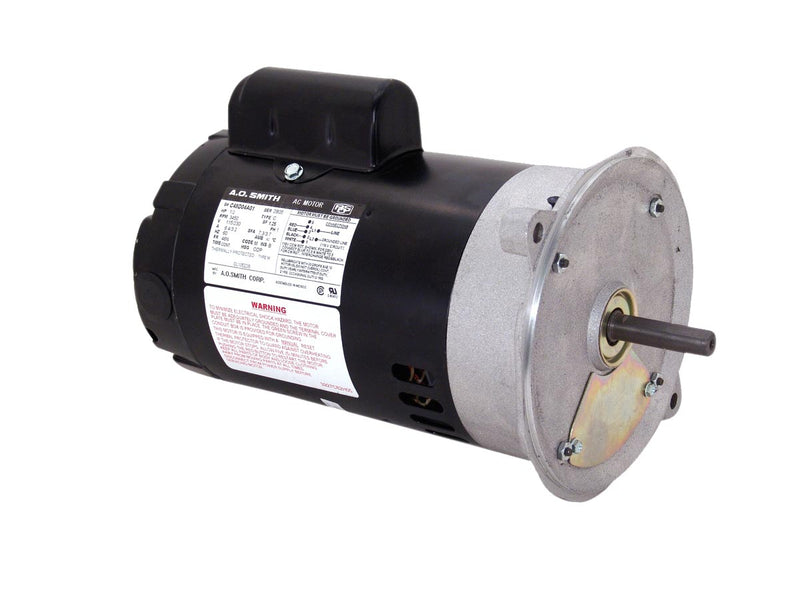

Item: Oil Burner Motor, Motor Type: Capacitor-Start, HP: 1/3, Nameplate RPM: 3450, Voltage: 115/230, Frame: 48N, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Sleeve, Shaft Type: Flat, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.5", "C" Dim: 12.41, Protection: Manuel, Thermal Protection: Yes, Cooling: Ambient.
| Item | Oil Burner Motor |
| Motor Type | Capacitor-Start |
| HP | 1/3 |
| Nameplate RPM | 3450 |
| Voltage | 115/230 |
| Frame | 48N |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Sleeve |
| Shaft Type | Flat |
| Shaft Number | 1 |
| Shaft Length | 1.875" |
| Shaft Dia. | 0.5" |
| "C" Dim | 12.41 |
| Protection | Manuel |
| Thermal Protection | Yes |
| Cooling | Ambient |
