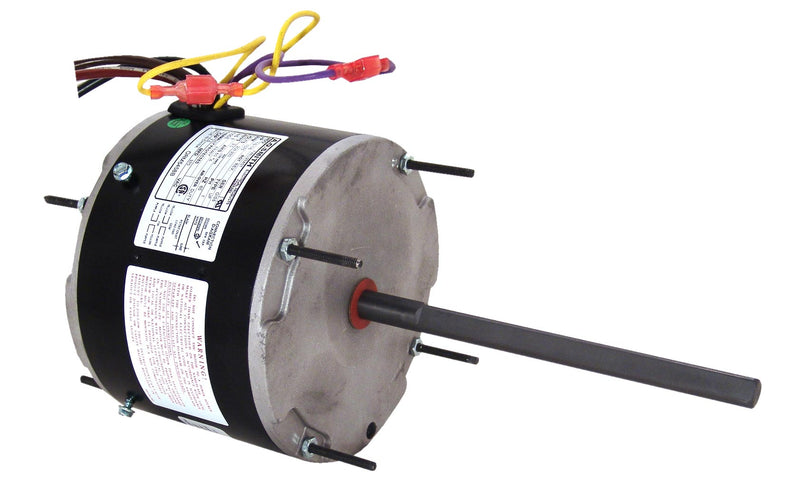

Century AO Smith ORM5488 Multi-HP Condenser Motor, 1/3 to 1/8 HP, PSC, 825 RPM, 208-230V

CenturySKU: c2090591
MPN : ORM5488
Weight : 15.0 lb

filler

Price:
$177.29 $216.20

Availability : Usually Ships in 3-5 Business Days
  • Features: Removable drain plugs on each end, Rheem mounting holes, 36" leads, 60 degree C ambient

Item: Condenser Fan Motor, Motor Type: PSC, HP: 1/3 to 1/8, Nameplate RPM: 825, Voltage: 208-230, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Insulation Class: B, Bearings: Sleeve, Shaft Number: 1, Shaft Length: 6.5", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: 7.5M 370V.

ItemCondenser Fan Motor
Motor TypePSC
HP1/3 to 1/8
Nameplate RPM825
Voltage208-230
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase1
Speeds1
Insulation ClassB
BearingsSleeve
Shaft Number1
Shaft Length6.5"
Shaft Dia.0.5"
Thermal ProtectionYes
CoolingAir Over
Capacitor7.5M 370V
