- Features: 40 degree C ambient, Type JM, External slinger, Terminal in bracket construction

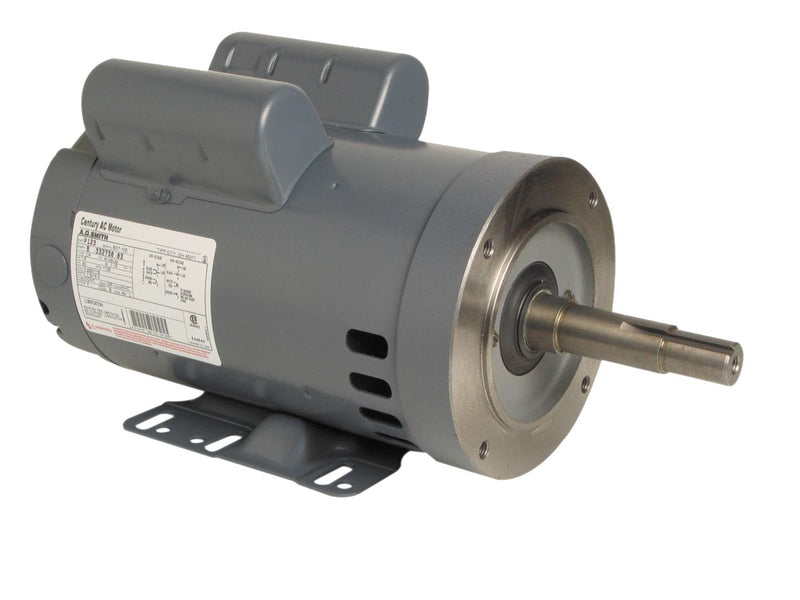

Item: Close-Coupled Pump Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 2, Nameplate RPM: 1800, Voltage: 115/230, Frame: 182JM, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Special, Shaft Number: 1, Shaft Length: 4.25", Shaft Height: 4.5", Shaft Dia.: 0.875", "C" Dim: 16.3, Protection: None, Thermal Protection: No, Cooling: Ambient.
| Item | Close-Coupled Pump Motor |
| Motor Type | Capacitor-Start/Capacitor-Run |
| HP | 2 |
| Nameplate RPM | 1800 |
| Voltage | 115/230 |
| Frame | 182JM |
| Enclosure | Drip Proof |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.15 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Special |
| Shaft Number | 1 |
| Shaft Length | 4.25" |
| Shaft Height | 4.5" |
| Shaft Dia. | 0.875" |
| "C" Dim | 16.3 |
| Protection | None |
| Thermal Protection | No |
| Cooling | Ambient |
