Availability : Usually Ships in 5 Business Days

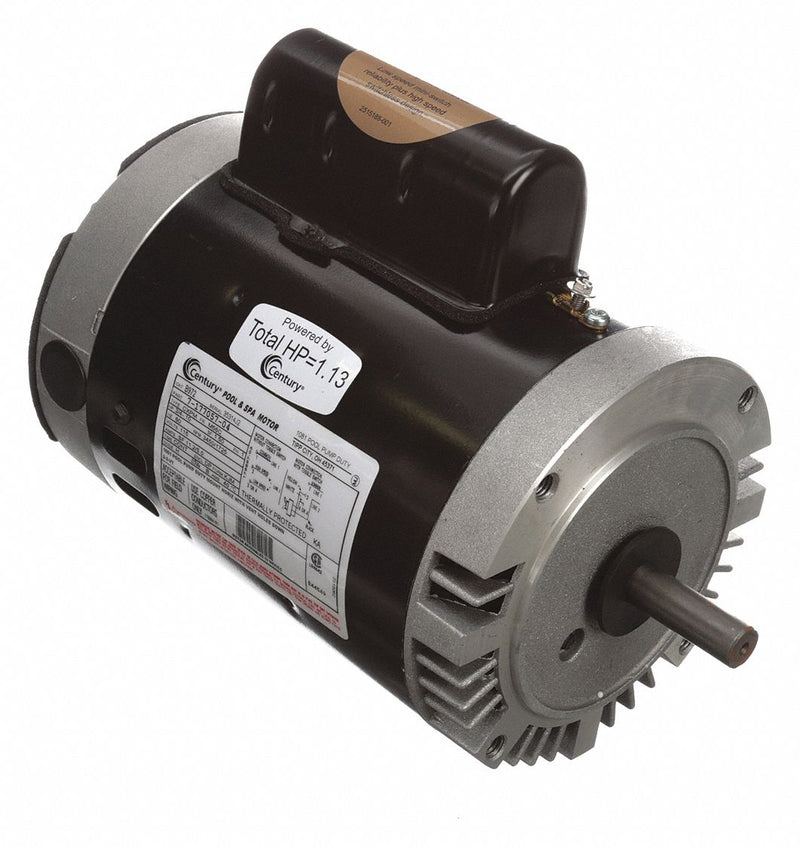

Pool and Spa Pump Motor; Motor Application: Pump; Motor Sub Application: Pool and Spa Pump; Motor Design: Permanent Split Capacitor; Motor Enclosure Design: Open Dripproof; HP: 1/10, 3/4; Nameplate RPM: 3450/1725; Frame: 56C; Motor Shaft Rotation: CCWSE; Voltage: 115; Full Load Amps: 11.2/5; Phase: 1; Hz: 60; Motor Mounting Type: Face; Motor Bearings: Ball; Finish: Black; Motor Flange Material: Aluminum; Shaft: Keyed; Shaft Material: AISI 1215 Steel; Motor Thermal Protection: Auto; Motor Service Factor: 1.5; Ambient Temperature: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 2 1/16 in; Ins. Class: B; RPM Range: 3001-3600; Motor Efficiency Group: Standard Efficient; Standards: CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022); Voltage Compatibility: 115, 115/208-230, 115/230, 120, 120/240
Item | Pool and Spa Pump Motor |
Motor Application | Pump |
Motor Sub Application | Pool and Spa Pump |
Motor Design | Permanent Split Capacitor |
Motor Enclosure Design | Open Dripproof |
HP | 1/10, 3/4 |
Nameplate RPM | 3450/1725 |
Frame | 56C |
Motor Shaft Rotation | CCWSE |
Voltage | 115 |
Full Load Amps | 11.2/5 |
Phase | 1 |
Hz | 60 |
Motor Mounting Type | Face |
Motor Bearings | Ball |
Finish | Black |
Motor Flange Material | Aluminum |
Shaft | Keyed |
Shaft Material | AISI 1215 Steel |
Motor Thermal Protection | Auto |
Motor Service Factor | 1.5 |
Ambient Temperature | 40 Degrees C |
Shaft Dia. | 5/8 in |
Shaft Length | 2 1/16 in |
Ins. Class | B |
RPM Range | 3001-3600 |
Motor Efficiency Group | Standard Efficient |
Standards | CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022) |
Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
