Availability : Usually Ships in 1-2 Business Days

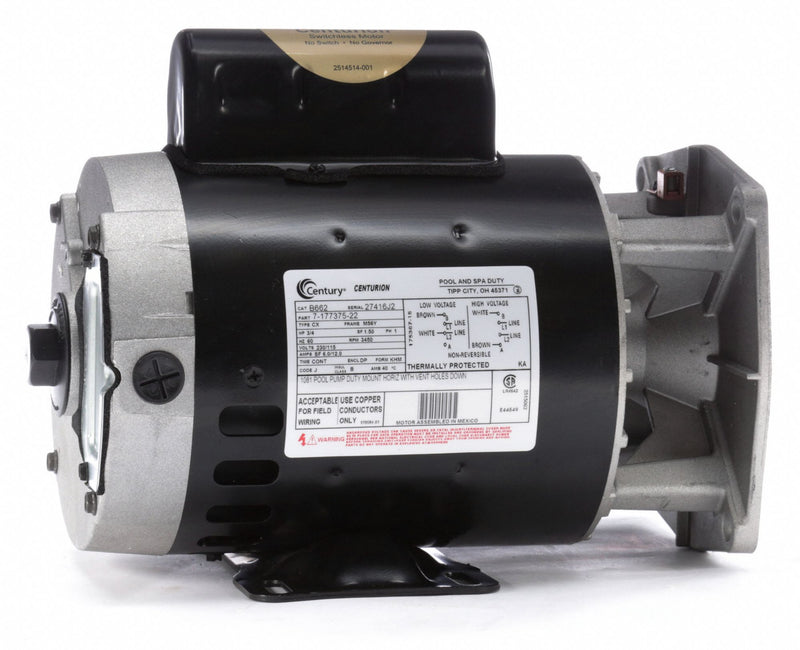

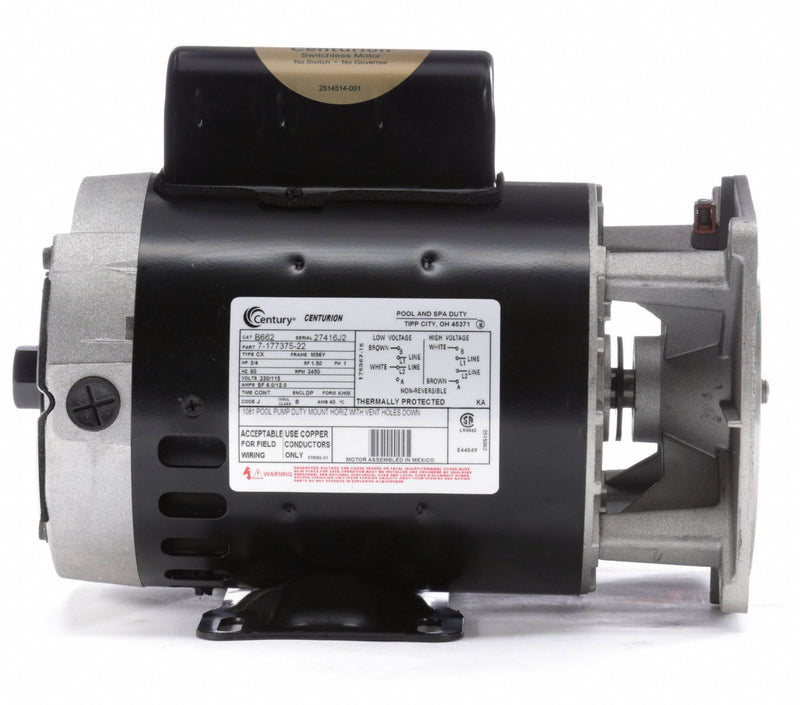

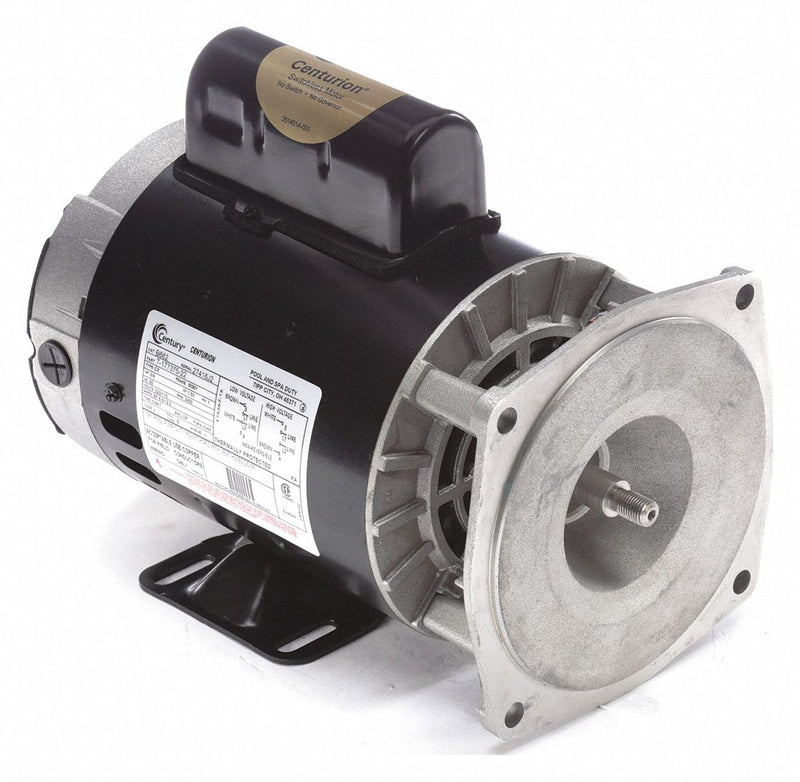

Replacement motor works with most leading brands of tub, spa, and above-ground pool pumps with threaded-shaft drives. 12 and 3 o'clock conduit entries provide wiring flexibility. Suitable as replacement motors for Arneson "Pool Sweep", Polaris "Vac-Sweep", and Letro "Jet Vac" brand pool cleaners. UL Recognized and CSA Certified.
Item | Pool and Spa Pump Motor |
Motor Application | Pump |
Motor Sub Application | Pool and Spa Pump |
Motor Design | Permanent Split Capacitor |
Motor Enclosure Design | Open Dripproof |
HP | 3/4 |
Nameplate RPM | 3450 |
Frame | 56Y |
Motor Shaft Rotation | CCWSE |
Voltage | 115/230 |
Full Load Amps | 12/6 |
Phase | 1 |
Hz | 60 |
Motor Mounting Type | Rigid Base |
Motor Bearings | Ball |
Finish | Black |
Motor Flange Material | Aluminum |
Shaft | Threaded 7/16-20 UNF-2A RH |
Shaft Material | 303 Stainless Steel |
Motor Thermal Protection | Auto |
Motor Service Factor | 1.5 |
Ambient Temperature | 40 Degrees C |
Shaft Dia. | 5/8 in |
Shaft Length | 7/16 in |
Ins. Class | B |
RPM Range | 3001-3600 |
Motor Efficiency Group | Standard Efficient |
Standards | CSA Certified, UL Recognized |
Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
