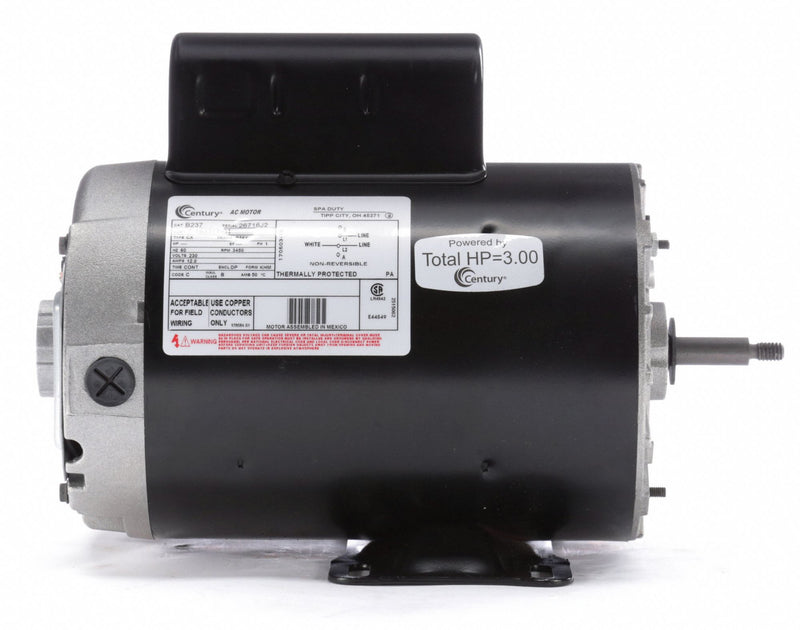

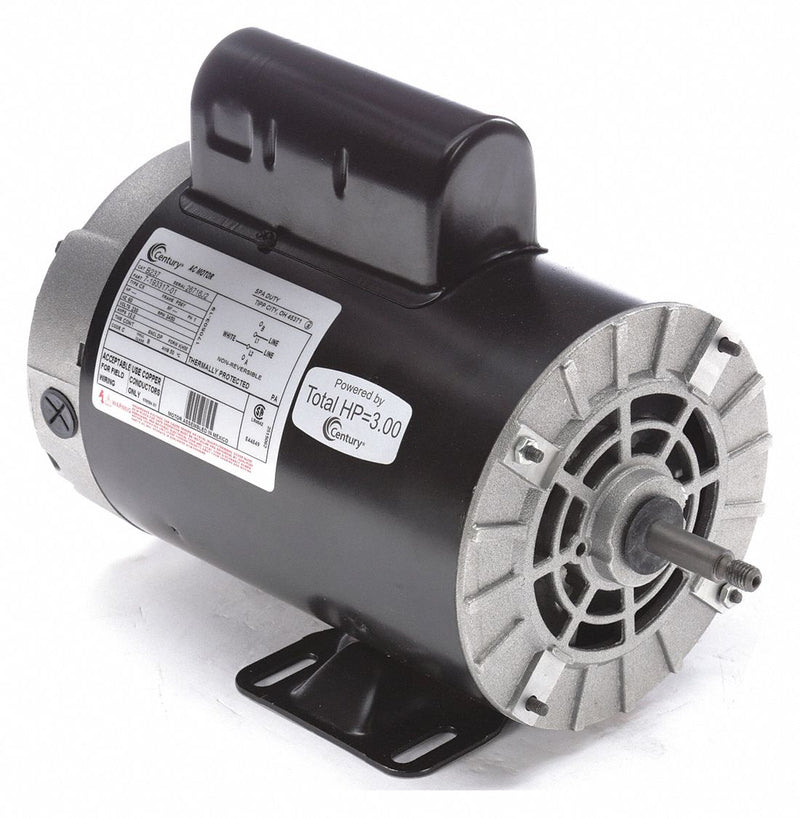

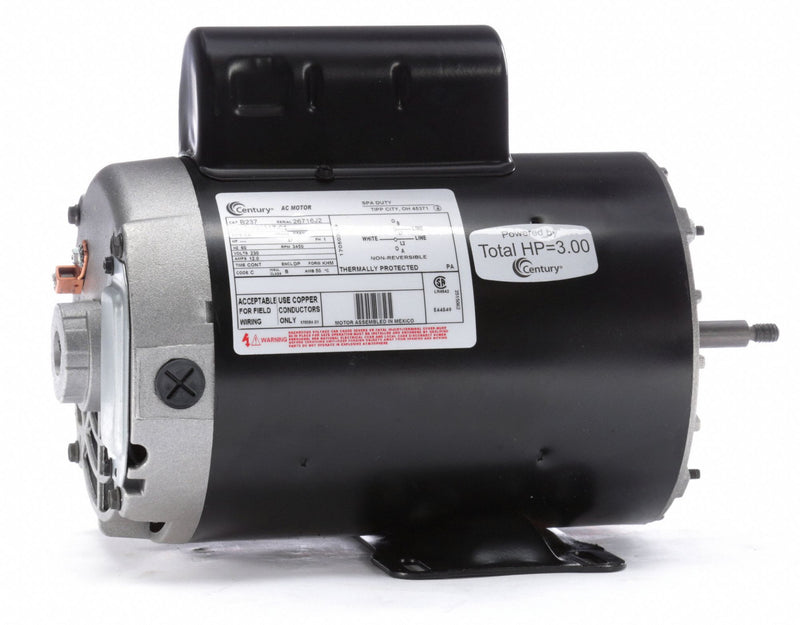

Pool and Spa Pump Motor; Motor Application: Pump; Motor Sub Application: Pool and Spa Pump; Motor Design: Permanent Split Capacitor; Motor Enclosure Design: Open Dripproof; HP: 3; Nameplate RPM: 3450; Frame: 56Y; Motor Shaft Rotation: CCWSE; Voltage: 230; Full Load Amps: 12; Phase: 1; Hz: 60; Motor Mounting Type: Rigid Base; Motor Bearings: Ball; Finish: Black; Motor Flange Material: Aluminum; Shaft: Threaded 3/8-16 UNC-2A RH; Shaft Material: 303 Stainless Steel; Motor Thermal Protection: Auto; Motor Service Factor: 1; Ambient Temperature: 50 Degrees C; Shaft Dia.: 1/2 in; Shaft Length: 2 3/8 in; Ins. Class: B; RPM Range: 3001-3600; Motor Efficiency Group: Standard Efficient; Standards: CSA Certified, UL Recognized; Voltage Compatibility: 115/230, 120/240, 230, 240
| Item | Pool and Spa Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| HP | 3 |
| Nameplate RPM | 3450 |
| Frame | 56Y |
| Motor Shaft Rotation | CCWSE |
| Voltage | 230 |
| Full Load Amps | 12 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Finish | Black |
| Motor Flange Material | Aluminum |
| Shaft | Threaded 3/8-16 UNC-2A RH |
| Shaft Material | 303 Stainless Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Ambient Temperature | 50 Degrees C |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 3/8 in |
| Ins. Class | B |
| RPM Range | 3001-3600 |
| Motor Efficiency Group | Standard Efficient |
| Standards | CSA Certified, UL Recognized |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
