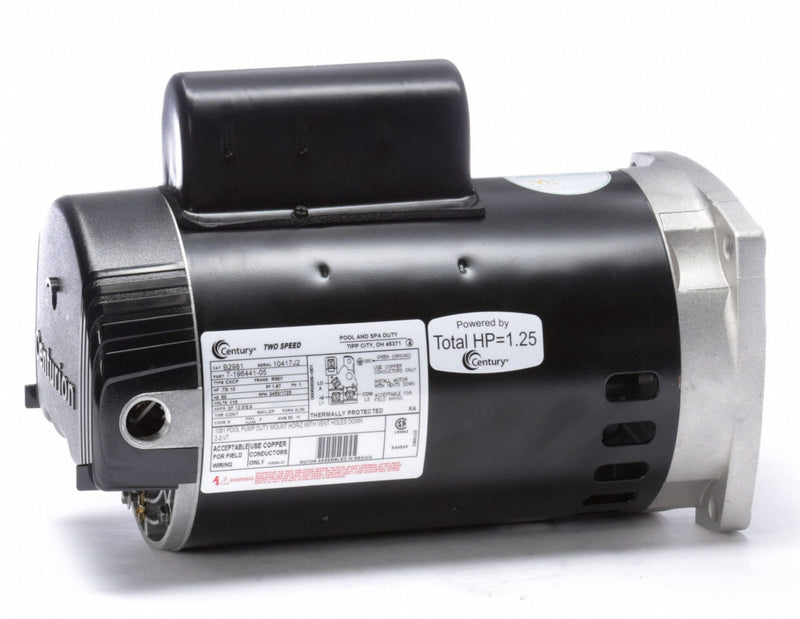

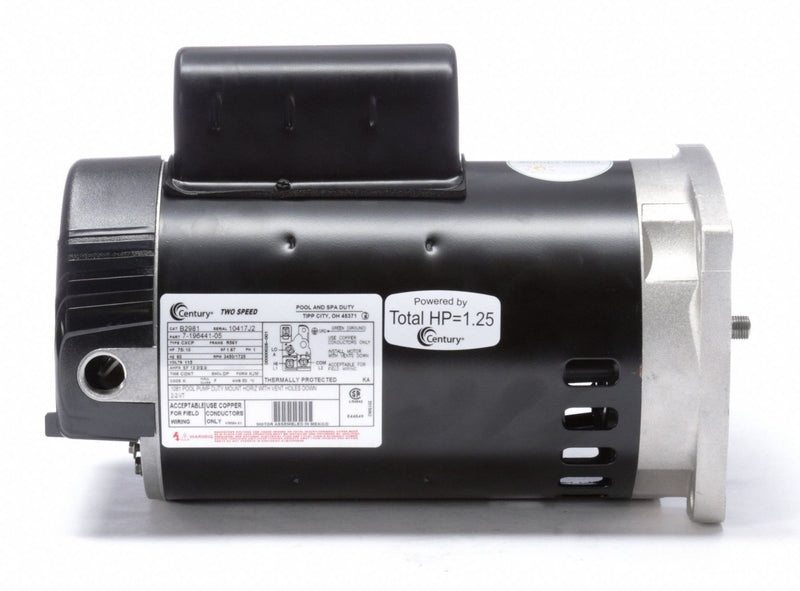

This 2-compartment, capacitor-start motor can be used as an equivalent replacement for most popular pool and spa manufacturers' pumps. Must equal or exceed service factor and HP for proper replacement. Auto thermal protection protects against damage from overheating. Ball bearings. UL Recognized and CSA Certified.
| Item | Square Flange Pool Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4; 1/10 |
| Nameplate RPM | 3450/1725 |
| Frame | 56Y |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 12.2/2 |
| Motor Mounting Type | Face |
| Motor Thermal Protection | Auto |
| Ins. Class | F |
| Motor Service Factor | 1.67 |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Shaft Rotation | CCWSE |
| Shaft | Threaded 1/2-20 UNF-2A RH |
| Shaft Material | 303 Stainless Steel |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Finish | Black |
| Motor Efficiency Group | Energy Efficient |
| RPM Range | 3001-3600 |
| Standards | CSA Certified (LR4642), UL Recognized (E44549) |
| Voltage Compatibility | 115, 120 |
