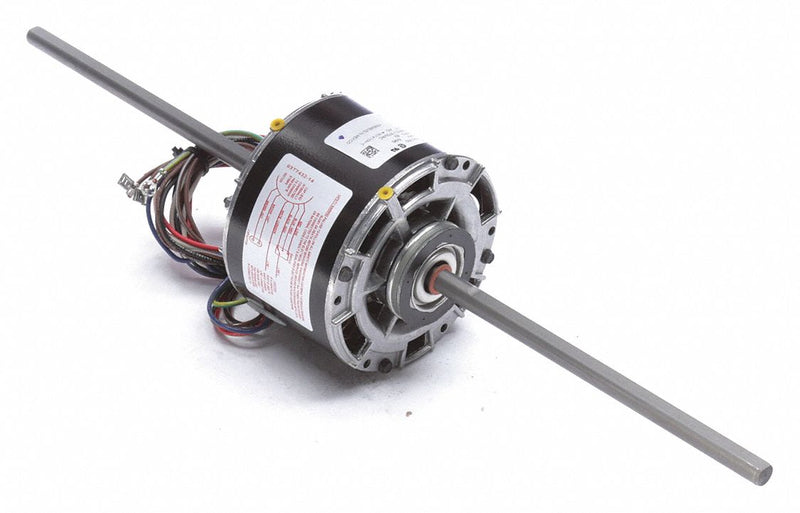

Century 1/8 HP Room Air Conditioner Motor,Permanent Split Capacitor,1075 Nameplate RPM,277 Voltage,Frame 42Y - 596

CenturySKU: C1561732
MPN : 596
Weight : 9.55 lb

filler

Price:
$245.68 $396.26

Availability : Usually Ships in 10 Business Days

For room air conditioners, evaporative coolers, remote fan coil units, and other shaft-mounted fan and blower applications. Capacitor No. 2MDV4 sold separately.

ItemRoom Air Conditioner Motor
Motor DesignPermanent Split Capacitor
HP1/8
No. of Speeds3
Voltage277
Motor Shaft RotationCCWLE
Frame42Y
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeRing
Shaft Dia.1/2 in
Shaft Length8 1/2 in
Motor Thermal ProtectionAuto
Nameplate RPM1075
Phase1
Motor ApplicationHVAC/R
Motor Sub ApplicationRoom Air Conditioner
Motor BearingsSleeve
Capacitor Required2MDV4
Ins. ClassB
Motor Service Factor1
DutyContinuous
Hz60
Full Load Amps0.83
Max. Ambient Temp.40 Degrees C
Body Dia.5 in
Length Less Shaft4 7/16 in
Motor Shaft DesignFlat
Ring to Ring Center4 in
Resilient Ring Dia.2 1/2 in
Lead Length36 in
StandardsCSA, UL
