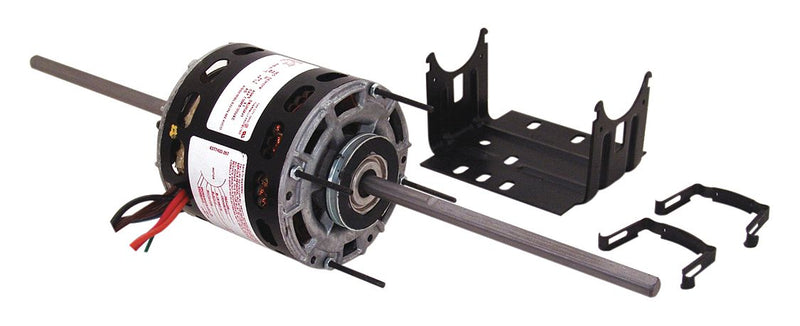

Room Air Conditioner Motor, Motor Application HVAC/R, Motor Sub Application Room Air Conditioner, Motor Type PSC, Enclosure Open Air-Over, Duty Continuous Air Over, HP 1/4, Nameplate RPM 1075, Voltage 115, Frame 42Y, Service Factor 1.0, Hz 60, Full Load Amps 4.1, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 4, Rotation CCWLE, Phase 1, Mounting Cradle/Stud, Bearings Sleeve, Body Dia. 5", Length Less Shaft 5-11/16", Shaft Dia. 1/2", Shaft Length 8" Ea., Stud Pattern 3-1/4", Stud Size #8-32 x 1-5/8", Ring to Ring Center 5-1/4", Resilient Ring Dia. 2-1/2", Bolt Circle Dia. 4-5/8", Lead Length 26", RPM Range 1001-1100, Capacitor Required Mfr. No. 2MDV6, Standards UL, CSA
