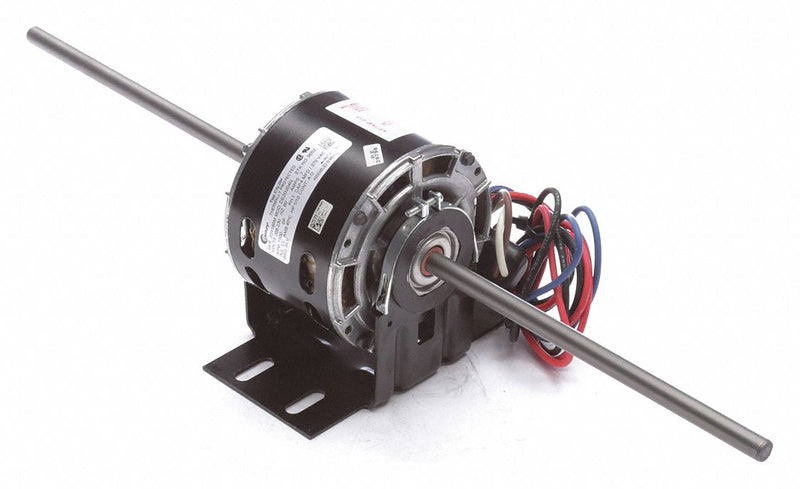

For room air conditioners, evaporative coolers, remote fan coil units, and other shaft-mounted fan and blower applications. Capacitor included.
| Item | Room Air Conditioner Motor |
| Motor Design | Permanent Split Capacitor |
| HP | 1/10 |
| No. of Speeds | 3 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CCWLE |
| Frame | 42Y |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Cradle Base |
| Shaft Dia. | 1/2 in |
| Shaft Length | 9 1/4 in |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1500 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Room Air Conditioner |
| Motor Bearings | Sleeve |
| Capacitor Required | Included |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Duty | Continuous |
| Hz | 60 |
| Full Load Amps | 0.7 |
| Max. Ambient Temp. | 40 Degrees C |
| Body Dia. | 5 in |
| Length Less Shaft | 4 11/16 in |
| Motor Shaft Design | Flat |
| Ring to Ring Center | 4 1/4 in |
| Resilient Ring Dia. | 2 1/2 in |
| Lead Length | 31 in |
| Standards | CSA, UL |
