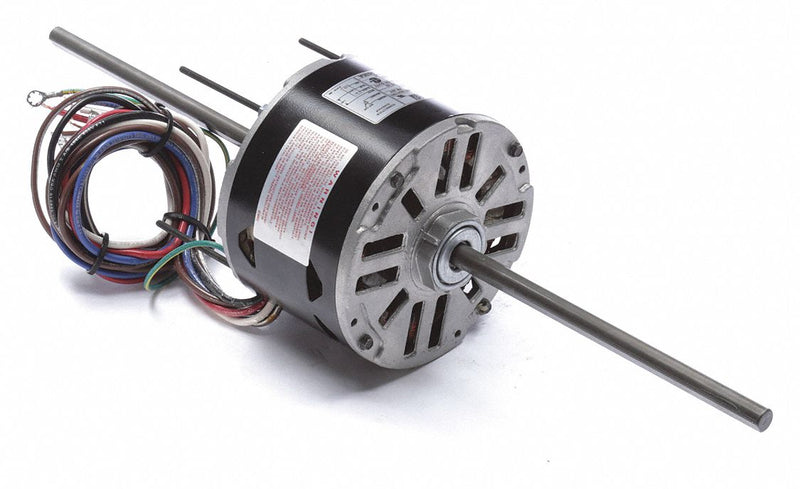

Room Air Conditioner Motor, Motor Application HVAC/R, Motor Sub Application Room Air Conditioner, Motor Type PSC, Enclosure Open Air-Over, Duty Continuous Air Over, HP 1/6, 1/10, 1/15, Nameplate RPM 1625, Voltage 115, Frame 48Y, Service Factor 1.0, Hz 60, Full Load Amps 1.92, 1.05, 0.80, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 60 Degrees C, Number of Speeds 1, Rotation CCWLE, Phase 1, Mounting Ring/Stud, Bearings Sleeve, Body Dia. 5-5/8", Length Less Shaft 4-3/8", Shaft Type Flat, Shaft Dia. 1/2", Shaft Length 8-1/2, 8", Stud Pattern 3-5/8 x 3-5/8", Stud Size #8-32", Resilient Ring Dia. 2-1/2", Bolt Circle Dia. 5-1/8", Lead Length 36", RPM Range 1601-1700, Capacitor Required Mfr. No. 2MDV4, Standards UL(E46412), CSA(LR43341)
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
