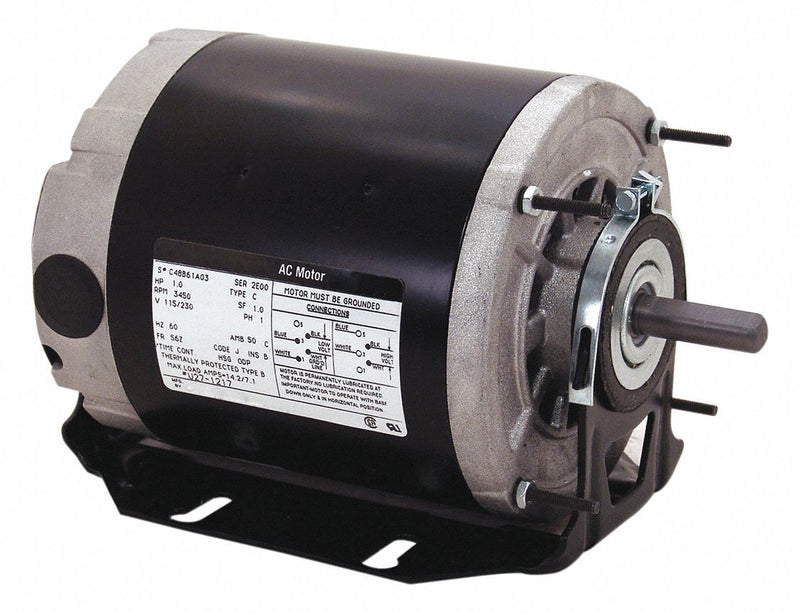

Ideal for use in fans, blowers, whole-house fans, air circulators, and air coolers where a quiet running motor is required. Features quick-connect terminal board.
| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | Split-Phase |
| HP | 1/3 to 1/15 |
| No. of Speeds | 2 |
| Nameplate RPM | 1725/850 |
| Voltage | 115 |
| Frame | 56Z |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 5.2/3 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 9 3/16 in |
| Overall Length | 11 1/16 in |
| Body Dia. | 6 1/2 in |
| Mounting Stud Pattern | 4-1/8 in x 4-1/8 in |
| Resilient Ring Dia. | 2 1/2 in |
| Ring to Ring Center | 8 11/16 in |
| Nominal Efficiency | 64 % |
| Duty | Continuous |
| Phase | 1 |
| Standards | CSA Certified, UL Recognized |
| Includes | 5/8 in dia Shaft Bushing |
| Voltage Compatibility | 115, 120 |
