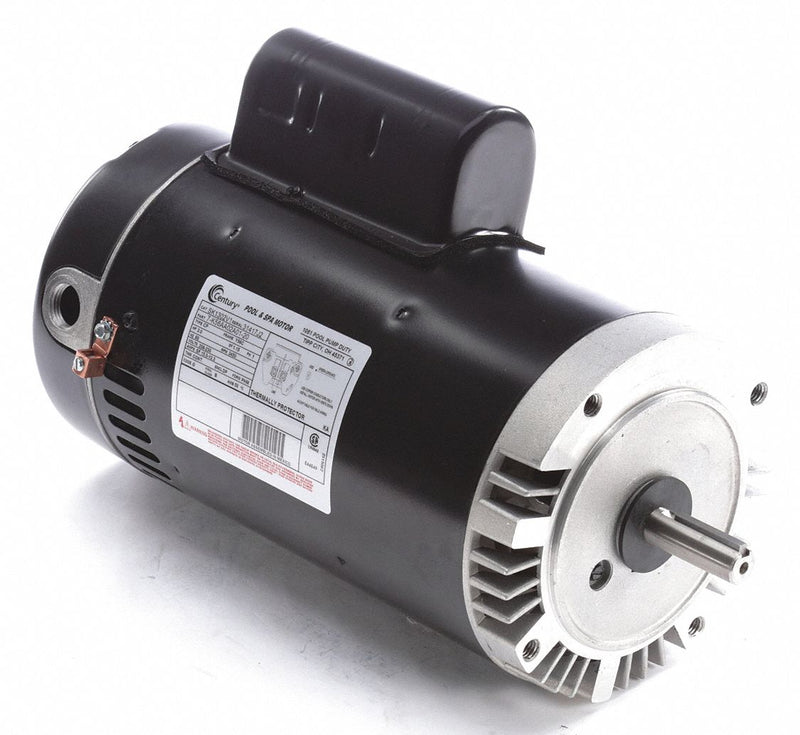

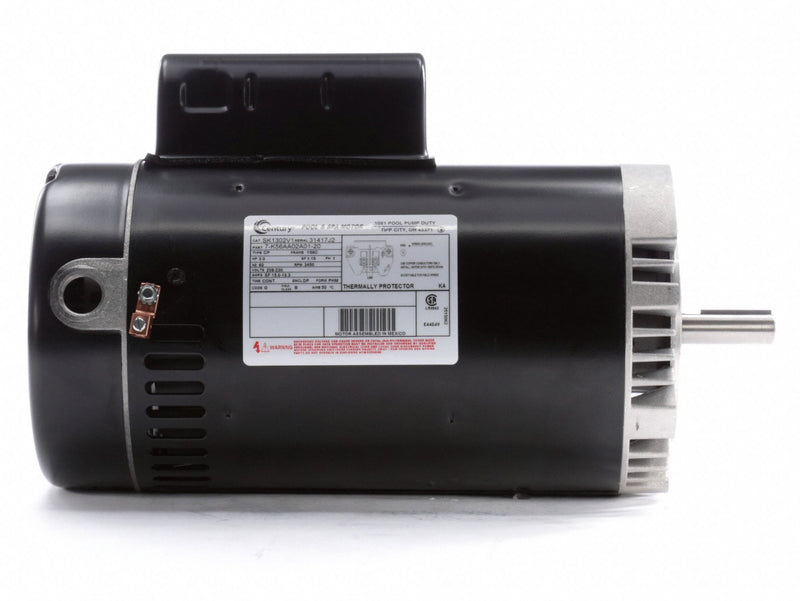

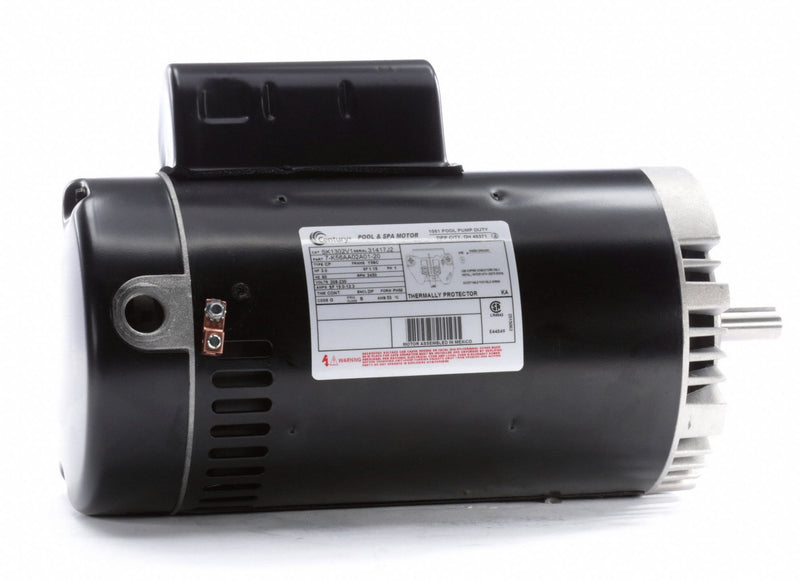

Motors are equivalent replacements for most popular pool and spa pump manufacturers' pumps. Sealed switch design prevents water infiltration. Moistureheat-resistant bearing lubricant.
| Item | Pool and Spa Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 3 |
| Nameplate RPM | 3450 |
| Frame | 56C |
| Motor Shaft Rotation | CCWSE |
| Voltage | 208-230 |
| Full Load Amps | 15-13.3 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Finish | Black |
| Motor Flange Material | Aluminum |
| Shaft | Keyed |
| Shaft Material | 303 Stainless Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.15 |
| Ambient Temperature | 50 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Ins. Class | B |
| RPM Range | 3001-3600 |
| Motor Efficiency Group | Standard Efficient |
| Standards | CSA Certified (LR4642), UL Recognized (E14663) |
| Voltage Compatibility | 115/208-230, 208-230, 208-240 |
