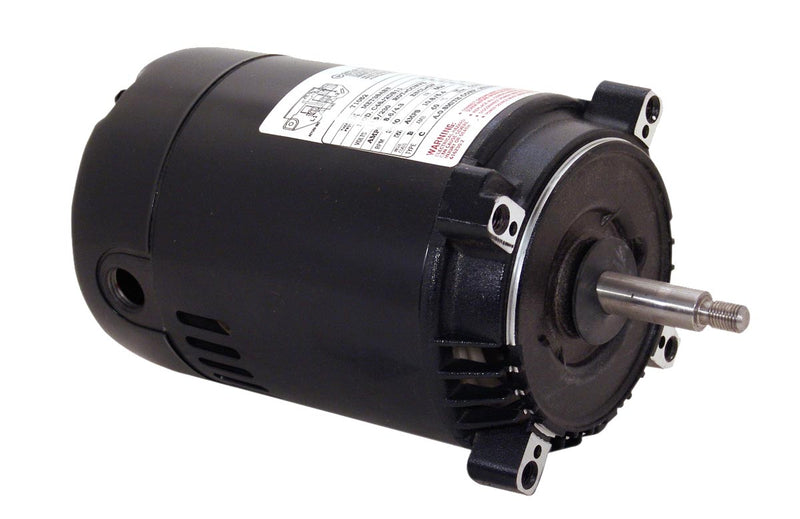

Century AO Smith T1032 C-Face Split-Phase Motor, 1/3 HP, Cap Start, 3450 RPM, 115, 230V, 56J Frame

CenturySKU: c2090976
MPN : T1032
Weight : 15.0 lb
filler

Price:
$189.86 $231.54

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient, Stainless steel shaft, "778" design, Not a good replacement for swim pool motors

Item: Pool and Spa Pump Motor, Motor Type: Capacitor-Start, HP: 1/3, Nameplate RPM: 3450, Voltage: 115/230, Frame: 56J, Enclosure: Drip Proof, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.8, Bearings: Ball, Base: None, Shaft Type: Threaded, Shaft Number: 1, Shaft Length: 1.875", Shaft Dia.: 0.625", Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemPool and Spa Pump Motor
Motor TypeCapacitor-Start
HP1/3
Nameplate RPM3450
Voltage115/230
Frame56J
EnclosureDrip Proof
RotationCCW
Hz60
Phase1
Speeds1
Service Factor1.8
BearingsBall
BaseNone
Shaft TypeThreaded
Shaft Number1
Shaft Length1.875"
Shaft Dia.0.625"
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
