- Features: 3 thru-bolts on 4.42" dia. bolt circle, 36" leads

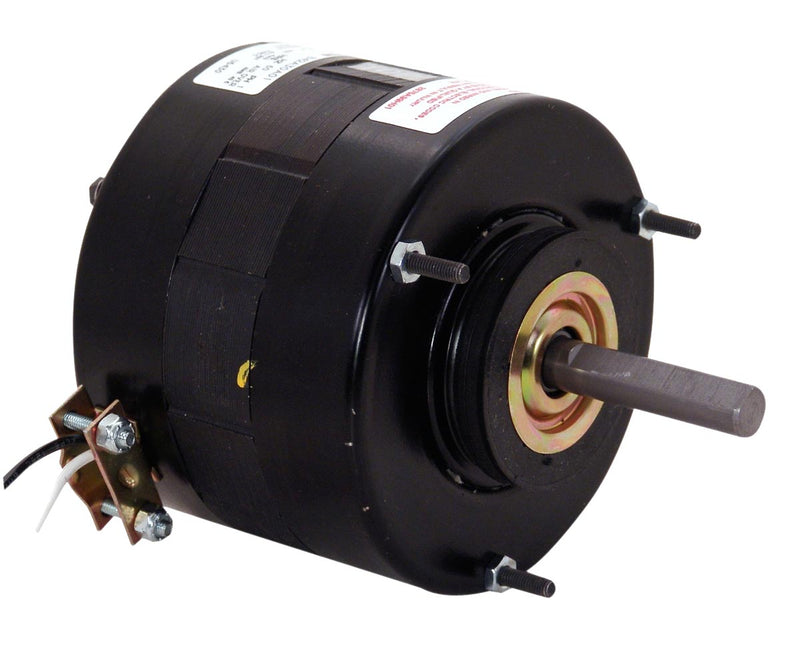

Item: Unit Heater Motor, Motor Type: Split-Phase, HP: 1/15, Nameplate RPM: 1050, Voltage: 115, Enclosure: Totally Enclosed, Rotation: CW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Sleeve, Shaft Number: 1, Shaft Length: 2.67", Shaft Dia.: 0.5", Ring to Ring Center: 4.33", Thermal Protection: Yes, Cooling: Air Over.
| Item | Unit Heater Motor |
| Motor Type | Split-Phase |
| HP | 1/15 |
| Nameplate RPM | 1050 |
| Voltage | 115 |
| Enclosure | Totally Enclosed |
| Rotation | CW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Sleeve |
| Shaft Number | 1 |
| Shaft Length | 2.67" |
| Shaft Dia. | 0.5" |
| Ring to Ring Center | 4.33" |
| Thermal Protection | Yes |
| Cooling | Air Over |
