- Features: 3 thru-bolts on 4.42" dia. bolt circle, 60" leads

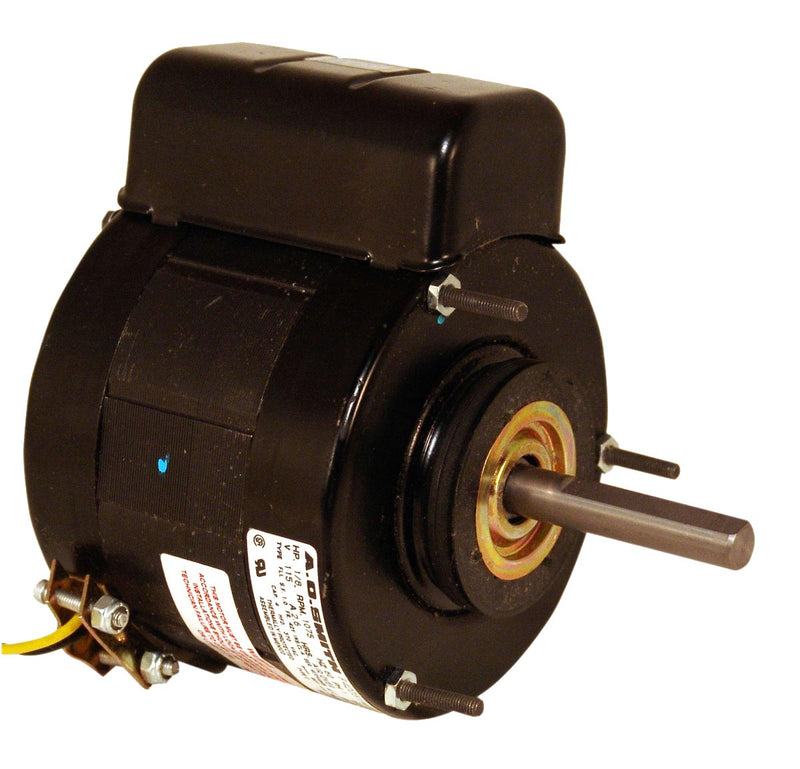

Item: Unit Heater Motor, Motor Type: PSC, HP: 1/8, Nameplate RPM: 1075, Voltage: 115, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Sleeve, Shaft Number: 1, Shaft Length: 2.92", Shaft Dia.: 0.5", Ring to Ring Center: 4.58", Thermal Protection: Yes, Cooling: Air Over, Capacitor: Included.
| Item | Unit Heater Motor |
| Motor Type | PSC |
| HP | 1/8 |
| Nameplate RPM | 1075 |
| Voltage | 115 |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Sleeve |
| Shaft Number | 1 |
| Shaft Length | 2.92" |
| Shaft Dia. | 0.5" |
| Ring to Ring Center | 4.58" |
| Thermal Protection | Yes |
| Cooling | Air Over |
| Capacitor | Included |
