Use with unit heaters and other shaft-mounted fan and blower equipment in dusty, dirty, noncombustible environments.

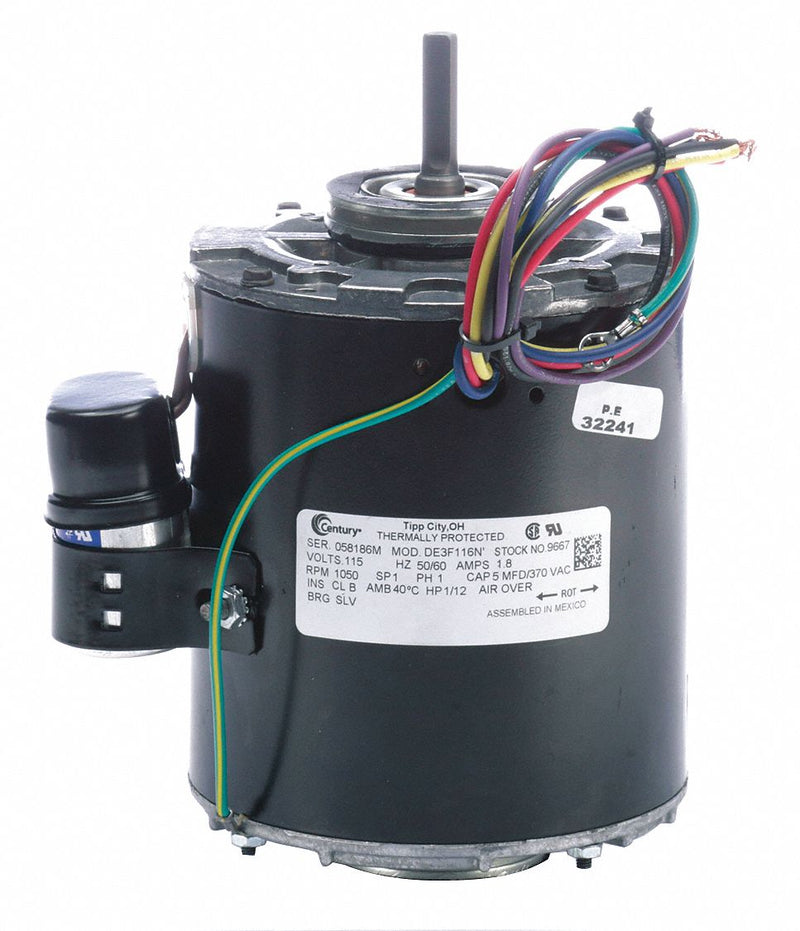

| Item | Unit Heater Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Unit Heater |
| Motor Design | Permanent Split Capacitor |
| HP | 1/12 |
| Nameplate RPM | 1050 |
| Voltage | 115 |
| Frame | 42Y |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Ring |
| No. of Speeds | 1 |
| Hz | 60/50 |
| Phase | 1 |
| Full Load Amps | 1.8 |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Overall Length | 8 3/16 in |
| Length Less Shaft | 6 11/16 in |
| Shaft Dia. | 3/8 in |
| Shaft Length | 1 1/2 in |
| Body Dia. | 5 in |
| Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 6 5/16 in |
| Application | Dirty, Noncombustible Environments, Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty |
| Standards | CSA Certified (LR43341/LR4642), UL Recognized (E46412/E49807) |
| Includes | Mounted 5 MFD 370 V AC Capacitor w/End Cap, Resilient Rings |
| Voltage Compatibility | 115, 120 |
