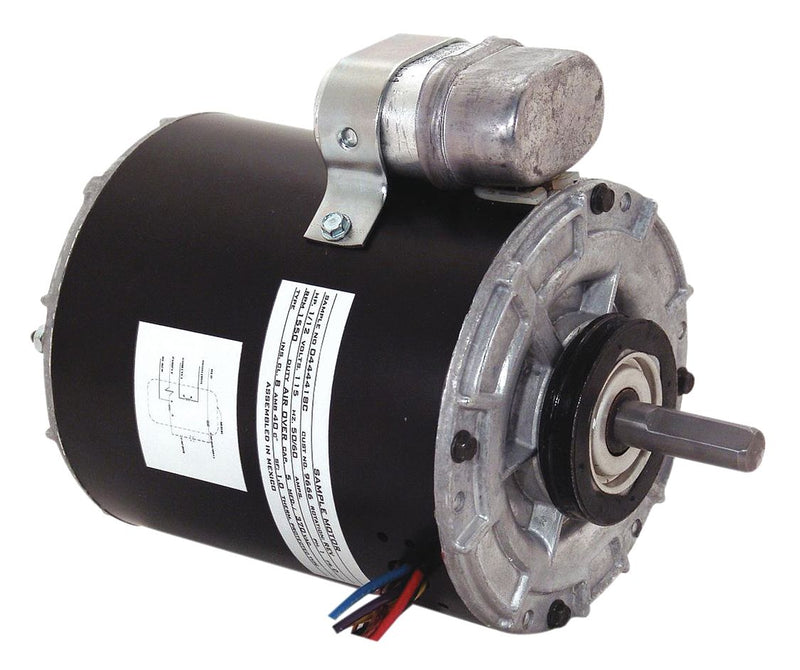

Unit Heater Motor, Motor Application HVAC/R, Motor Sub Application Unit Heater, Motor Type PSC, HP 1/12, Nameplate RPM 1050, Voltage 208-230, Frame 42Y, Enclosure Totally Enclosed Air-Over, Mounting Ring/Hole, Number of Speeds 1, Hz 60/50, Phase 1, Full Load Amps 0.61-0.61, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Bearings Sleeve, Ambient Temperature 40 Degrees C, Rotation CW/CCW, Duty Continuous Air-over, Efficiency Group Standard, Overall Length 8-3/16", Length Less Shaft 6-11/16", Shaft Dia. 3/8", Shaft Length 1-1/2", Body Dia. 5", Ring Dia. 2-1/4", Ring to Ring Center 6-5/16", Application Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Noncombustible Environments, RPM Range 1001-1100, Standards UL Recognized (E46412/E49807), CSA Certified (LR43341/LR4642), Includes Resilient Rings, Mounted 5 MFD 370 VAC Capacitor w/End Cap
