Availability : Usually Ships in 1-2 Business Days
Use with unit heaters and other shaft-mounted fan and blower equipment in dusty, dirty, noncombustible environments.

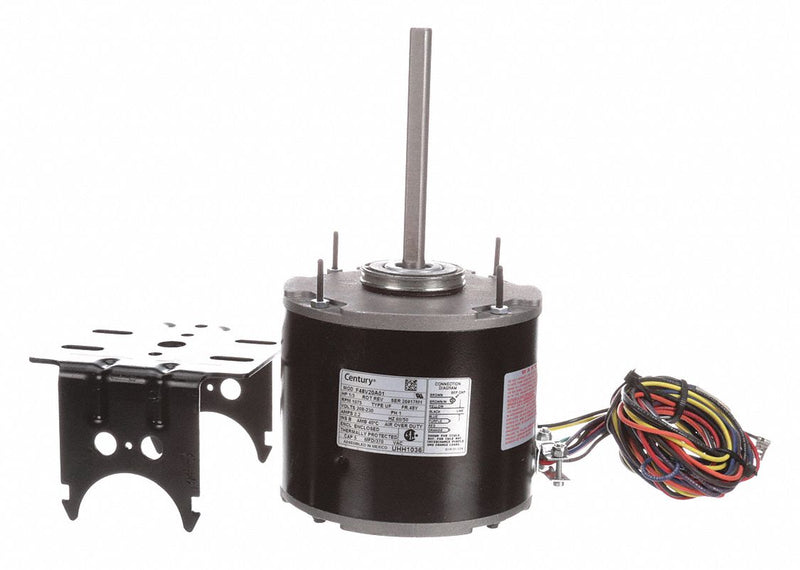

Item | Unit Heater Motor |
Motor Application | HVAC/R |
Motor Sub Application | Unit Heater |
Motor Design | Permanent Split Capacitor |
HP | 1/3 |
Nameplate RPM | 1075 |
Voltage | 208-230 |
Frame | 48Y |
Motor Enclosure Design | Totally Enclosed Air-Over |
Motor Mounting Type | Cradle Base |
No. of Speeds | 1 |
Hz | 60/50 |
Phase | 1 |
Full Load Amps | 2.2-2.2 |
Motor Thermal Protection | Auto |
Ins. Class | B |
Motor Service Factor | 1 |
Motor Bearings | Ball |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Duty | Continuous |
Motor Efficiency Group | Energy Efficient |
Overall Length | 10 5/8 in |
Length Less Shaft | 5 5/8 in |
Shaft Dia. | 1/2 in |
Shaft Length | 5 in |
Body Dia. | 5 5/8 in |
Ring Dia. | 2 1/4 in |
Ring to Ring Center | 5 3/16 in |
Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
Application | Dirty, Noncombustible Environments, Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty |
Standards | CSA Certified (LR43341/LR4642), UL Recognized (E46412/E49807) |
Includes | 2 Mounting Clamp Assemblies, 4 Split Rings, 5 MFD 370 V AC Capacitor w/End Cap, Bracket Assembly, Mounting Base, R |
