- Features: 40 degree C ambient, 60" leads, 4 thru-bolts and 4 same end studs on 5.15" bolt circle

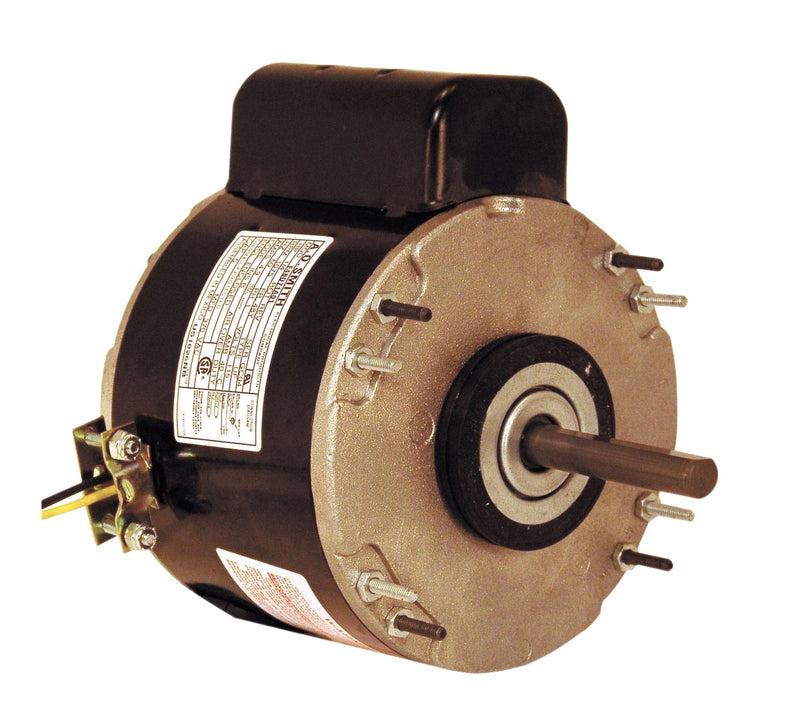

Item: Unit Heater Motor, Motor Type: PSC, HP: 1/4, Nameplate RPM: 1075, Voltage: 115, Frame: 48Y, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Bearings: Sleeve, Base: None, Shaft Number: 1, Shaft Length: 2.49", Shaft Dia.: 0.5", Thermal Protection: Yes, Cooling: Air Over, Capacitor: Included.
| Item | Unit Heater Motor |
| Motor Type | PSC |
| HP | 1/4 |
| Nameplate RPM | 1075 |
| Voltage | 115 |
| Frame | 48Y |
| Enclosure | Totally Enclosed |
| Rotation | CW/CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Bearings | Sleeve |
| Base | None |
| Shaft Number | 1 |
| Shaft Length | 2.49" |
| Shaft Dia. | 0.5" |
| Thermal Protection | Yes |
| Cooling | Air Over |
| Capacitor | Included |
