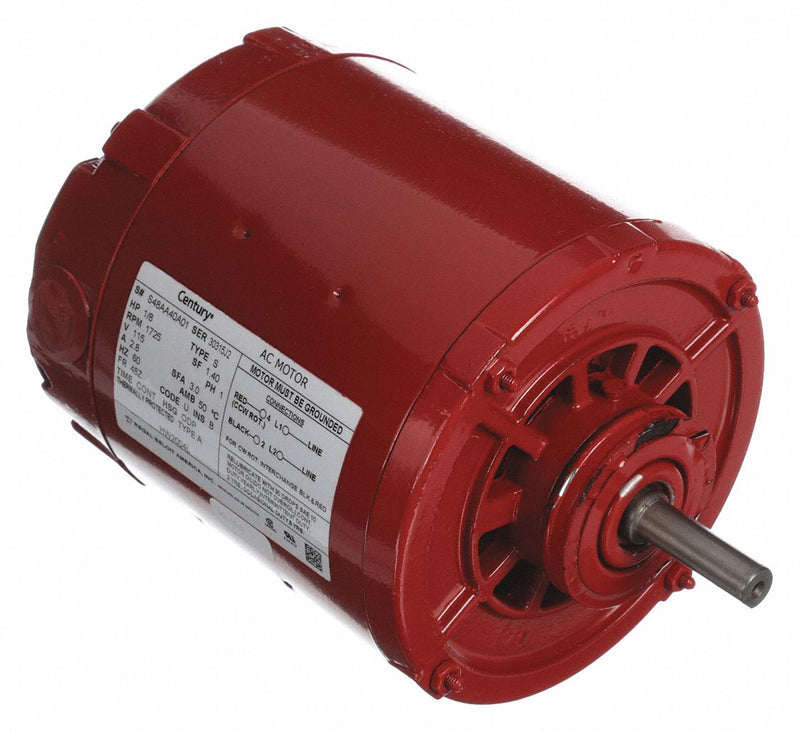

Century 1/8 HP Water Circulator Motor, Split-Phase, 1725 Nameplate RPM, 115 Voltage, Frame 48Z - HW2004L
Availability : Usually Ships in 1-2 Business Days
These exact replacement motors are fully interchangeable with specific motors on Bell & Gossett, Armstrong, Teel, and Taco brand circulator pumps. Red finish.
| Item | Water Circulator Motor |
| Motor Application | Pump |
| Motor Sub Application | Water Circulator |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/8 |
| Nameplate RPM | 1725 |
| Frame | 48Z |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 2.8 |
| Motor Mounting Type | Ring |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.4 |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 50 Degrees C |
| Motor Shaft Rotation | CCWLE |
| Ring Dia. | 2 1/4 in |
| Resilient Ring Dia. | 2 1/4 in |
| Ring to Ring Center | 7 in |
| Replacement For | Mfr. No. HW2004 |
| Standards | CSA, UL |
| Voltage Compatibility | 115, 120 |
