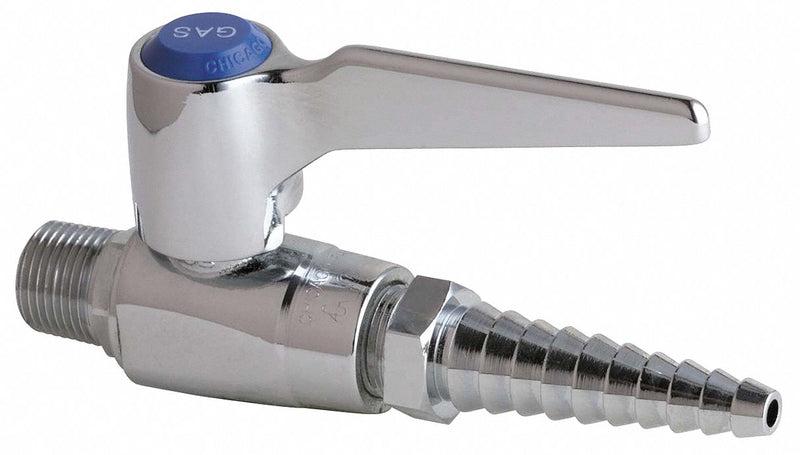

Chicago Faucets Ball Valve, Brass, Inline, 2-Piece, Pipe Size 3/8 in, Connection Type MNPT x Barb - 909-GASCP
filler
Availability : Usually Ships in 5 Business Days
Made from an alloy of copper and zinc, this brass valve offers malleability and corrosion resistance, with added durability. Brass is stronger and harder than copper, yet more malleable than steel and iron, allowing the valve to resist cracking. It can withstand extremely high temperatures, and will not rust.
| Item | Ball Valve |
| Body Material | Brass |
| Body Style | Inline |
| General Connection Type | Male NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 3/8 in |
| Connection Type | MNPT x Barb |
| Port | Standard |
| Max. Pressure | 125 psi CWP |
| Temp. Range | 40 Degrees to 140 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | PTFE |
| Stem Type | Positive Retained |
| Handle Type | Lever |
| Handle Material | Zinc |
| Stem Material | 303 Stainless Steel |
| Body Seal Material | PTFE |
| Features | Lab Gas or Vacuum, Rated for Air |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Brass |
| Standards | ANSI Z21.15B-2006 |
| Overall Length | 4.5 in |
