Availability : Usually Ships in 5 Business Days

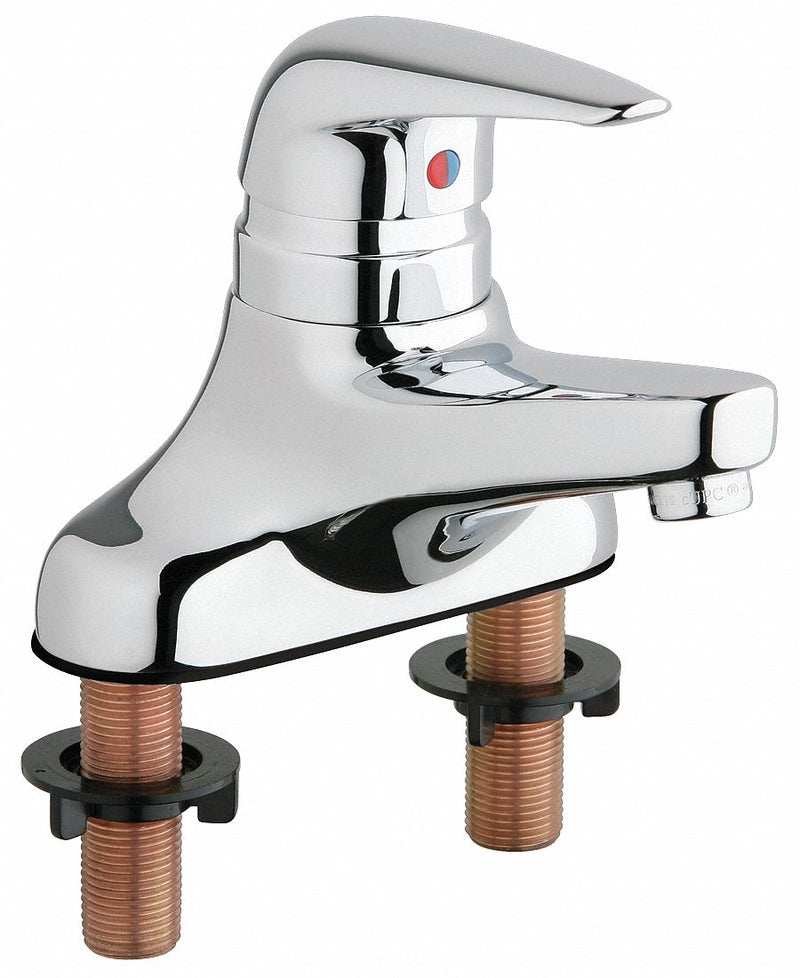

Low-arc-spout faucets have short spouts that sit close to the sink basin. They are frequently used on high-traffic sinks in public or commercial areas because they minimize the distance water travels from the spout to the sink, which reduces splashing.,Single-joystick-handle two-hole centerset deck-mount bathroom faucets have one handle that extends from the top of the faucet and looks like a joystick. Users can grip the joystick and move it to control water temperature and flow through the faucet. The hot and cold water supplies join inside the spout to provide water for handwashing and grooming tasks. Two-hole centerset deck-mount faucets install onto sinks that have two centered holes that are 4" apart when measured from center-of-hole to center-of-hole. They can also be used to cover an unused middle hole on sinks with a three-hole centerset pattern.
Item | Low Arc Bathroom Faucet |
Mounting Type - Faucet | Deck |
Faucet Type | Bathroom Sink Faucet |
Number of Holes | 2 |
Faucet Installation Style | Centerset |
Number of Handles | 1 |
Faucet Activation | Manual |
Faucet Handle Type | Joystick |
Faucet Handle Material | Metal |
Faucet Spout Shape | Low Arc |
Faucet Finish | Chrome |
Plumbing Brand | Chicago Faucets |
Series | 420 |
Faucet Body Material | Cast Brass |
Flow Rate | 1.5 gpm |
Flow Outlet Type - Faucet | Laminar |
Ligature Resistant | No |
Vandal Resistant Features | Vandal Resistant Handles |
ADA Compliance | Yes |
Standards | AB1953, ANSI A117.1, ASME A112.181/CSA B125.1, NSF 372, NSF 61/9 |
CEC Compliant | Non CEC Compliant |
Water Inlet Connection Size | 1/2 in |
Water Inlet Connection Type | Male NPSM |
Replacement Cartridge Mfr. Model Number | 420-XJKNF |
Includes | Mounting Hardware |
Valve Type - Faucets | Hot/Cold Cartridge |
Features | Mounting Hardware Included |
Manufacturers Warranty Length | Lifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 1 yr. Limited Finish warranty, 5 yr. Limited Cartridge Warranty |
Spout Length | 4-5/8" |
