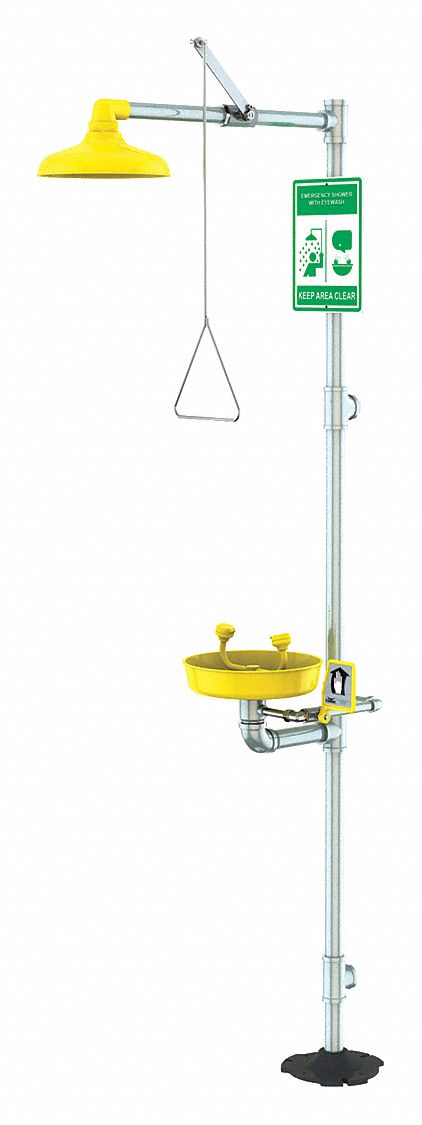

Two spray-type outlet heads deliver a flood of water for rinsing eyes. Head has a flip top dust cover, internal flow control and filter to remove impurities from water. Features 10" dia. shower head, 11-1/2" stainless steel eyewash bowl, and 1" IPS chrome plated brass stay-open ball valve. Furnished with stainless steel actuating arm and 29" stainless steel pull rod. Includes ANSI-compliant sign and inspection tag. Meets ANSI Z358.1-2014 standard.
| Item | Shower with Eye Wash |
| Pipe Material | Galvanized Steel |
| Eye Wash Bowl Material | ABS Plastic |
| Shower Head Material | ABS Plastic |
| Valve Material | Chrome Plated Brass |
| Color | Yellow |
| Width | 33 3/4 in |
| Height | 94 3/4 in |
| Head Dia. | 10 in |
| Bowl Dia. | 11 1/2 in |
| Eye Wash Activates By | Flag Push Handle |
| Eye Wash Handle Material | Cast Aluminum |
| Shower Head Activates By | Pull Rod |
| Shower Handle Length | 29 in |
| Shower Handle Material | Stainless Steel |
| Fitting Size | 1 1/4 in NPT |
| Fitting Material | Galvanized Steel |
| Eye Wash and Shower Mounting | Floor |
| Standards | ANSI Z358.1-2014 |
| ADA Compliance | No |
| Assembled/Unassembled | Unassembled |
| Eye Wash Covering | Yes |
| ANSI Compliant | Yes |
| Heat Traced | No |
| Includes | Flip Top Dust Covers, Inspection Tag, Sign |
