Availability : Usually Ships in 15 Business Days

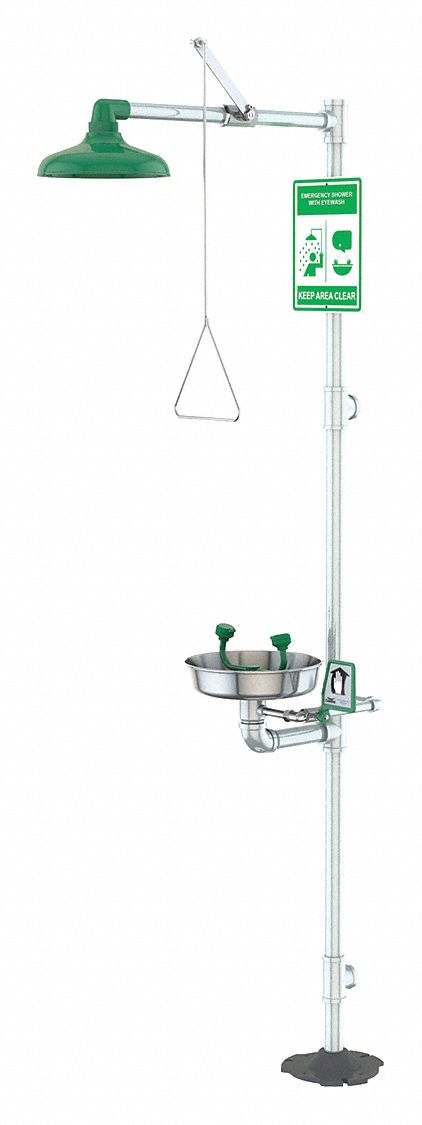

Two spray-type outlet heads deliver a flood of water for rinsing eyes. Head has a flip top dust cover, internal flow control and filter to remove impurities from water. Features 10" dia. shower head, 11-1/2" stainless steel eyewash bowl, and 1" IPS chrome plated brass stay-open ball valve. Furnished with stainless steel actuating arm and 29" stainless steel pull rod. Includes ANSI-compliant sign and inspection tag. Meets ANSI Z358.1-2014 standard.
Item | Shower with Eye Wash |
Pipe Material | Galvanized Steel |
Eye Wash Bowl Material | Stainless Steel |
Shower Head Material | ABS Plastic |
Valve Material | Chrome Plated Brass |
Color | Green |
Width | 33 3/4 in |
Height | 94 3/4 in |
Head Dia. | 10 in |
Bowl Dia. | 11 1/2 in |
Eye Wash Activates By | Flag Push Handle |
Eye Wash Handle Material | Cast Aluminum |
Shower Head Activates By | Pull Rod |
Shower Handle Length | 29 in |
Shower Handle Material | Stainless Steel |
Fitting Size | 1 1/4 in NPT |
Fitting Material | Galvanized Steel |
Eye Wash and Shower Mounting | Floor |
Standards | ANSI Z358.1-2014 |
ADA Compliance | No |
Assembled/Unassembled | Unassembled |
Eye Wash Covering | Yes |
ANSI Compliant | Yes |
Heat Traced | No |
Includes | Flip Top Dust Covers, Inspection Tag, Sign |
