Availability : Usually Ships in 1-3 Business Days

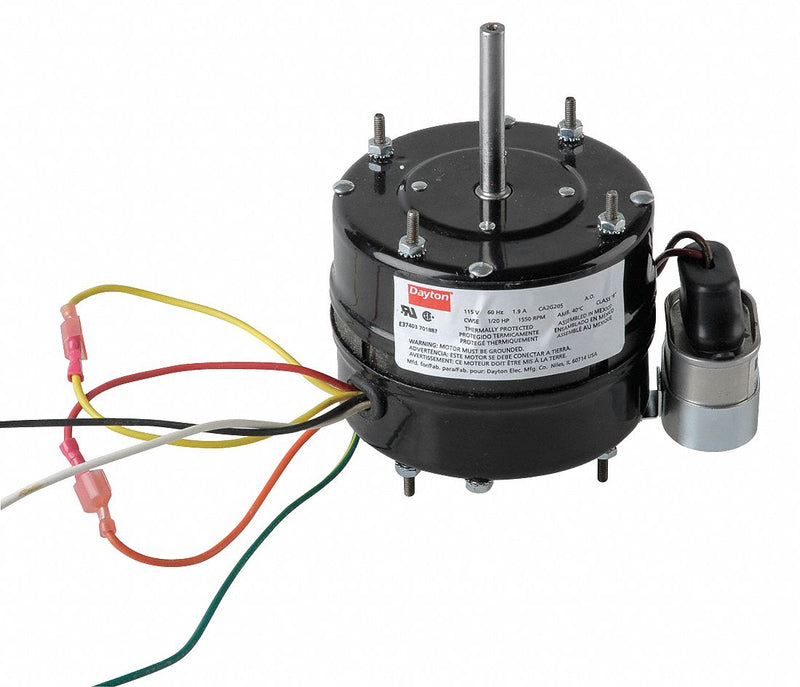

Item | HVAC Motor |
Motor Application | HVAC/R |
Motor Sub Application | Direct Drive Fan/Blower |
Motor Design | Permanent Split Capacitor |
Motor Enclosure Design | Totally Enclosed Air-Over |
HP | 1/15 |
Nameplate RPM | 1625 |
No. of Speeds | 1 |
Frame | 4.4 |
Voltage | 115 |
Hz | 60 |
Phase | 1 |
Full Load Amps | 1 |
Motor Mounting Type | Stud |
Motor Thermal Protection | Auto |
Ins. Class | B |
Motor Service Factor | 1 |
Motor Bearings | Ball |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Length Less Shaft | 3 1/2 in |
Shaft Dia. | 3/8 in |
Shaft Length | 2 1/2 in |
Body Dia. | 4.4 in |
Stud/Base Mtg. Pattern | 2-3/4 in x 2-3/4 in |
Duty | Continuous |
Standards | UL Recognized (E37403) CSA Certified |
Includes | 5 MFD 370 V AC Capacitor |
Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
