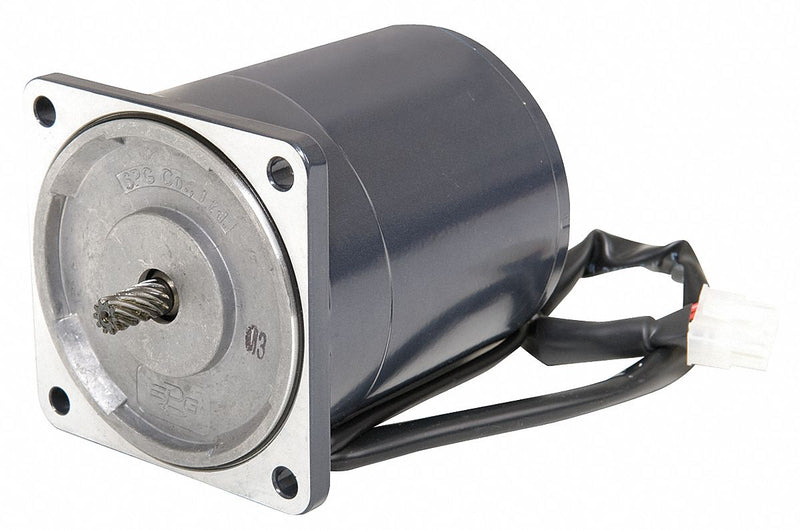

DC Gearmotor Component Motor; Motor Design: DC Permanent Magnet; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 1/8; Nameplate RPM: 2920; Voltage: 24V DC; Full Load Amps: 5.6 A; Full Load Torque: 2.691 in-lb; NEMA/IEC Frame: 90; Motor Mounting Type: Face; Motor Thermal Protection: None; Ins. Class: B; Motor Bearings: Ball; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Overall Length: 6 7/16 in; Length Less Shaft: 5 5/8 in; Shaft Dia.: 7/16 in; Shaft Length: 13/16 in; Stud Quantity: 4; Mounting Stud Location: Shaft End; Standards: cULus (E47479)
| Item | DC Gearmotor Component Motor |
| Motor Design | DC Permanent Magnet |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/8 |
| Nameplate RPM | 2920 |
| Voltage | 24V DC |
| Full Load Amps | 5.6 A |
| Full Load Torque | 2.691 in-lb |
| NEMA/IEC Frame | 90 |
| Motor Mounting Type | Face |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Overall Length | 6 7/16 in |
| Length Less Shaft | 5 5/8 in |
| Shaft Dia. | 7/16 in |
| Shaft Length | 13/16 in |
| Stud Quantity | 4 |
| Mounting Stud Location | Shaft End |
| Standards | cULus (E47479) |
