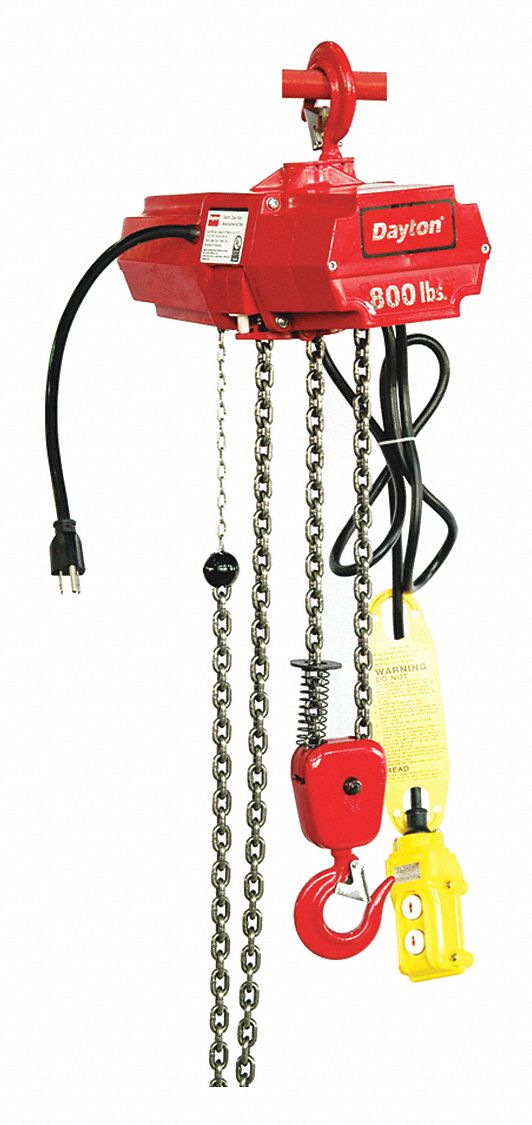

This Electric Chain Hoist provides precise load positioning and easy-to-use controls, even with awkward loads. It features H2 classification and is suitable for light machine shop fabricating, service, and maintenance.
| Electric Hoist Item | Chain Hoist |
| Load Capacity | 800 lb |
| Hoist Lift | 15 ft |
| Classification | H2 |
| Number of Speeds | 1 |
| Lift Speed | 7 fpm |
| Motor HP | 0.2 |
| Voltage | 115 |
| Phase | 1 |
| Min. Between Hooks | 16 3/4 in |
| Amps @ Low Volts | 3 A |
| Housing Depth | 4 5/8 in |
| Housing Length | 14 1/4 in |
| Housing Width | 6 in |
| Reeving | 2 |
| Brake | Load |
| Control | Push Button Pendant |
| Control Cord | 11 ft |
| Color | Red |
| Finish | Powder Coated |
| Hz | 60 |
| Lubrication | Grease |
| Thermal Protection | Yes |
| Standards | CUL and NEMA certified, Meets ASME/ANSI B30.16 Requirements |
| Hoist Mount | Hook Mounted - No Trolley |
