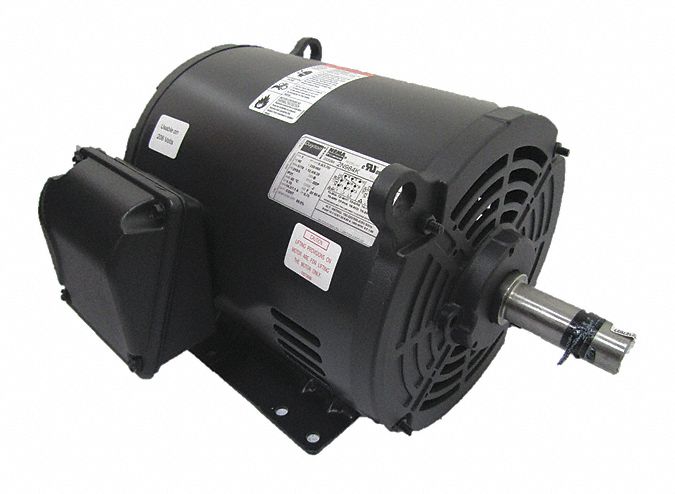

This inverter-duty motor is suitable for clean, dry, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment. It can withstand high voltage spikes produced by variable frequency drives, and can run at slow speeds without overheating.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 5 |
| Nameplate RPM | 1740 |
| Frame | 213/5 |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 12.7/6.4 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 3 in |
| Length Less Shaft | 13 13/16 in |
| Overall Length | 16 13/16 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 89.5 % |
| CC Number | CC029A |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 3 yr |
