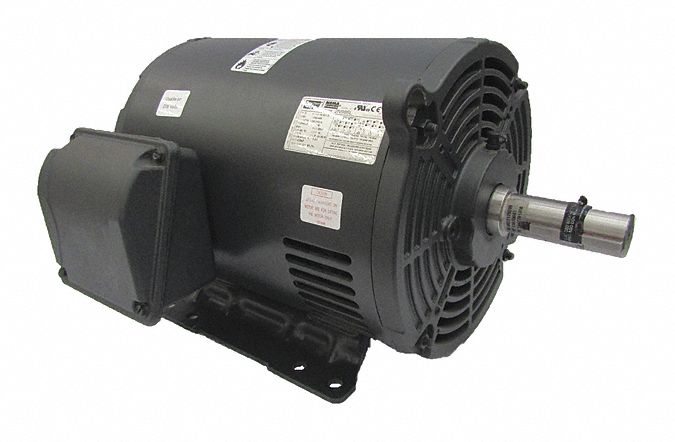

Dayton 10 HP, General Purpose Motor, 3-Phase, 1770 Nameplate RPM, 230/460 Voltage, 254/6U Frame - 2N986

DaytonSKU: C2979625
MPN : 2N986
Weight : 219.0 lb
filler

Price:
$1,455.56 $1,775.07

Availability : Usually Ships in 1-3 Business Days

This inverter-duty motor is suitable for clean, dry, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment. It can withstand high voltage spikes produced by variable frequency drives, and can run at slow speeds without overheating.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP10
Nameplate RPM1770
Frame254/6U
Voltage230/460
Hz60
Phase3
Full Load Amps25.7/12.9
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 3/8 in
Shaft Length3 3/4 in
Length Less Shaft18 1/16 in
Overall Length21 13/16 in
Motor Shaft DesignKeyed
StandardsUL, CSA, CE
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency91.7 %
CC NumberCC029A
Inverter RatedYes
Manufacturers Warranty Length3 yr
