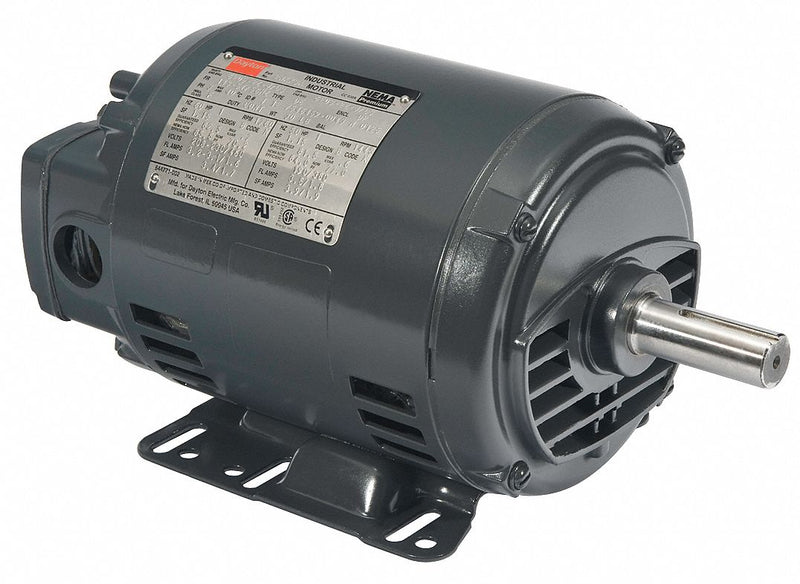

Dayton 2 HP, General Purpose Motor, 3-Phase, 3515 Nameplate RPM, 230/460 Voltage, 143-5T/56HZ Frame - 2NKX9

DaytonSKU: C2979725
MPN : 2NKX9
Weight : 44.5 lb
filler

Price:
$492.37 $600.45

Availability : Usually Ships in 1-3 Business Days

This inverter-duty motor is suitable for clean, dry, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment. It can withstand high voltage spikes produced by variable frequency drives, and can run at slow speeds without overheating.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP2
Nameplate RPM3515
Frame143-5T/56HZ
Voltage230/460
Hz60/50
Phase3
Full Load Amps5/2.5
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft10 1/2 in
Overall Length12 13/16 in
Motor Shaft DesignKeyed
StandardsUL, CSA, CE
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency85.5 %
CC NumberCC003A
Inverter RatedYes
Manufacturers Warranty Length3 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
