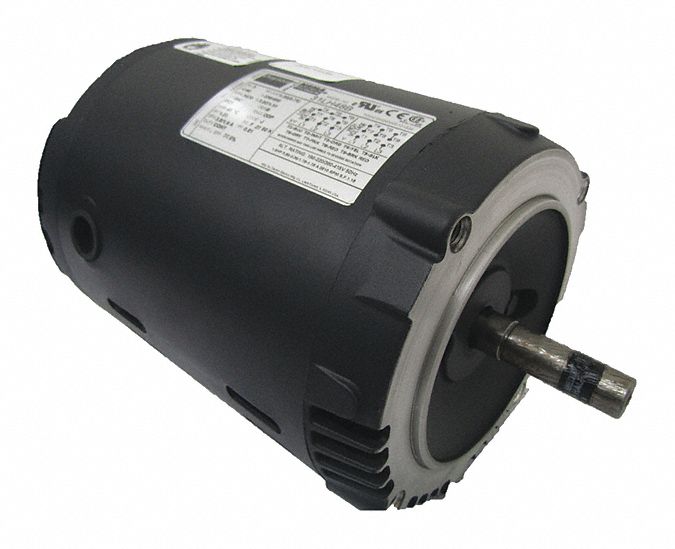

Dayton 31LH48 - 3Ph 1 HP 3470 208-230/460V 77.0

DaytonSKU: C2878599
MPN : 31LH48
Weight : 20.1 lb

filler

Price:
$271.46 $331.05

Availability : Usually Ships in 3-5 Business Days
ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1
Nameplate RPM3470
Frame56C
Voltage230/460
Hz60
Phase3
Full Load Amps3/1.5
No. of Speeds1
Motor Mounting TypeFace
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft9 5/6 in
Overall Length10 11/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupPremium Efficient
Nominal Efficiency77 %
Inverter RatedYes
IncludesMIMI 8S470A, Shaft Key
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
