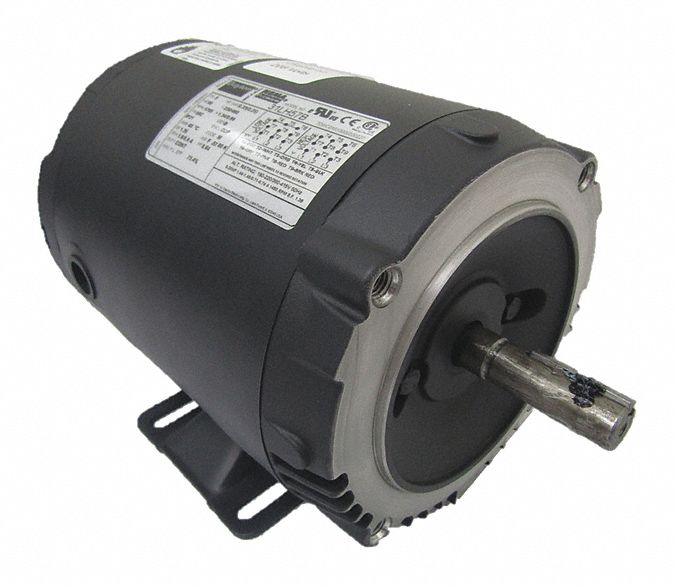

| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/3 |
| Nameplate RPM | 1765 |
| Frame | 56C |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 1.3/0.68 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.35 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 6 29/32 in |
| Overall Length | 10 5/16 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | Premium Efficient |
| Nominal Efficiency | 73.4 % |
| Inverter Rated | Yes |
| Includes | MIMI 8S470A, Shaft Key |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
