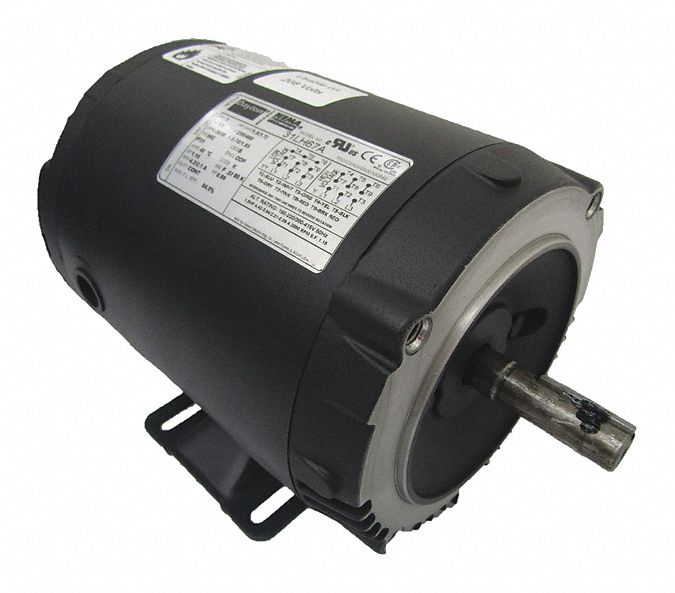

Dayton 1 1/2 HP, General Purpose Motor, 3-Phase, 3510 Nameplate RPM, 230/460 Voltage, 56C Frame - 31LH67

DaytonSKU: C2776961
MPN : 31LH67
Weight : 29.1 lb

filler

Price:
$279.48 $450.78

Availability : Usually Ships in 3 Business Days

Motor complies with 2015 efficiency legislation for small-frame motors.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1 1/2
Nameplate RPM3510
Frame56C
Voltage230/460
Hz60
Phase3
Full Load Amps3.7/1.9
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft8 15/16 in
Overall Length10 11/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupPremium Efficient
Nominal Efficiency84 %
Inverter RatedYes
IncludesMIMI 8S470A, Shaft Key
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
