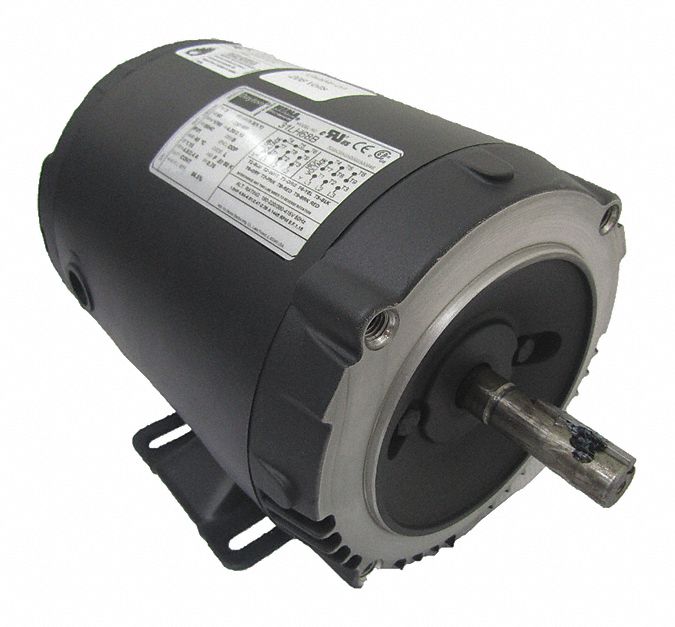

Dayton 31LH68 - 3Ph 1.5HP 1760 208-230/460 86.5

DaytonSKU: C2878263
MPN : 31LH68
Weight : 38.55 lb

filler

Price:
$289.91 $467.60

Availability : Usually Ships in 3 Business Days
ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1 1/2
Nameplate RPM1760
Frame56HC
Voltage230/460
Hz60
Phase3
Full Load Amps4.3/2.1
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft9 15/16 in
Overall Length13 1/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency86.5 %
CC NumberCC029A
Inverter RatedYes
IncludesMIMI 8S470A, Shaft Key
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
