Motor complies with 2015 efficiency legislation for small-frame motors. 40C max. ambient temperature.

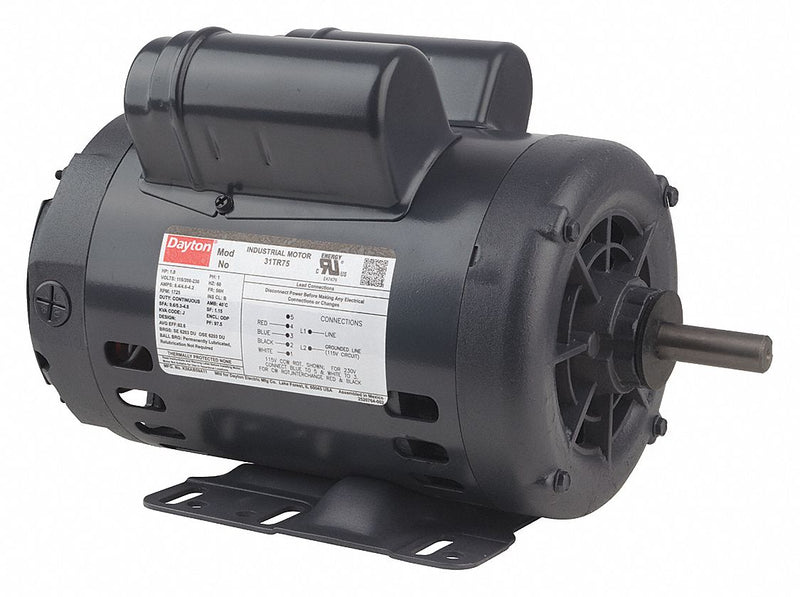

| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| Nameplate RPM | 1725 |
| Frame | 56H |
| Voltage | 115/208-230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 8.4/4.6-4.2 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 10 11/16 in |
| Overall Length | 12 5/8 in |
| Motor Shaft Design | Keyed |
| Standards | UL (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Premium Efficient |
| Nominal Efficiency | 82.6 % |
| Inverter Rated | No |
| Includes | 165V Start Capacitor, 240V Run Capacitor), 65 MFD, Start/Run Capacitors(506 MFD |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | Energy Aware Certified |
