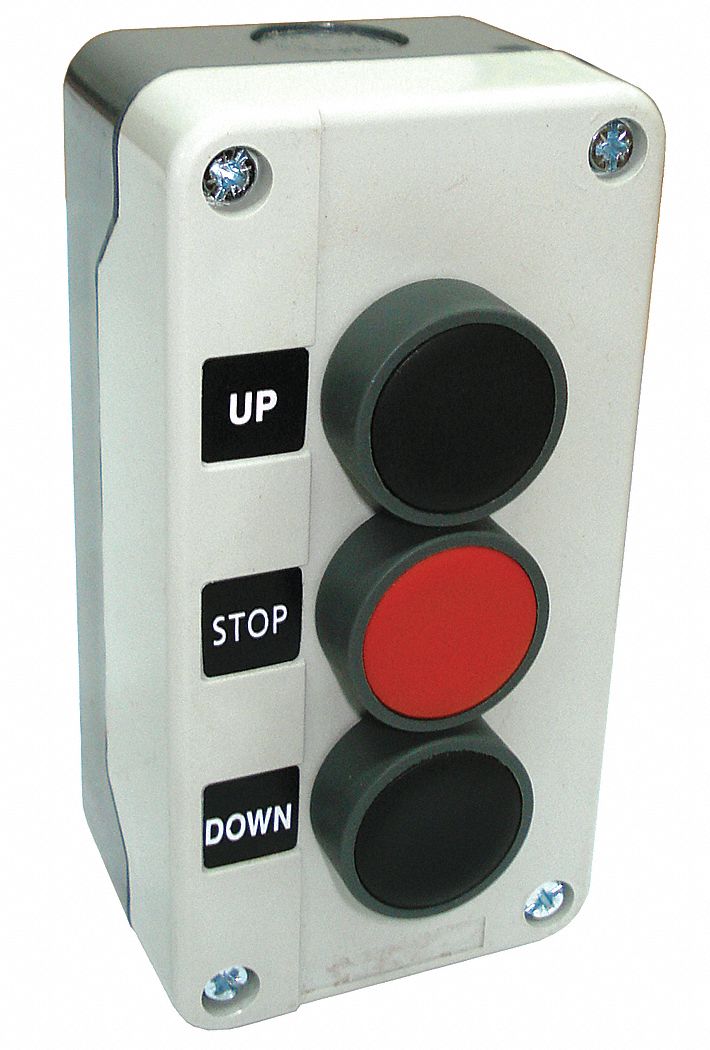

| Item | Push Button Control Station |
| Number of Operators | 3 |
| Size | 22 mm |
| Legend | Up/Stop/Down |
| Type of Operator | Push Button/Push Button/Push Button |
| Action | Momentary |
| Operator Color | Black/Red |
| Contact Form | 2NO/1NC |
| Mechanical Interlock | No |
| NEMA Rating | 4, 4X |
| Contact Rating | 10A @ 600V AC, 2.5A @ 24V DC |
| NEMA Contact Rating Designation | A600/Q600 |
| Mounting | Wall |
| Height | 1.98 in |
| Width | 5.27 in |
| Depth | 2.69 in |
| Head Material | Plastic |
| Enclosure Material | ABS |
| Enclosure Color | Gray |
| Standards | CE, CSA, IEC, UL |
