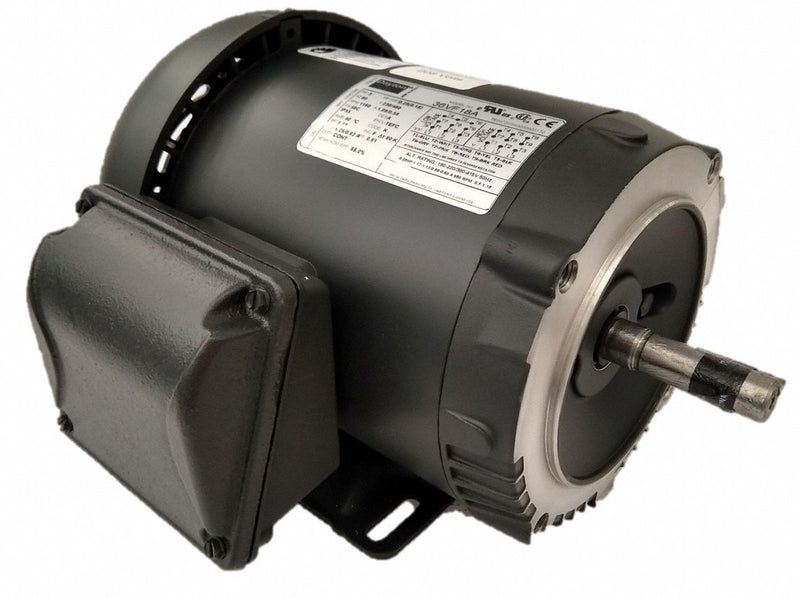

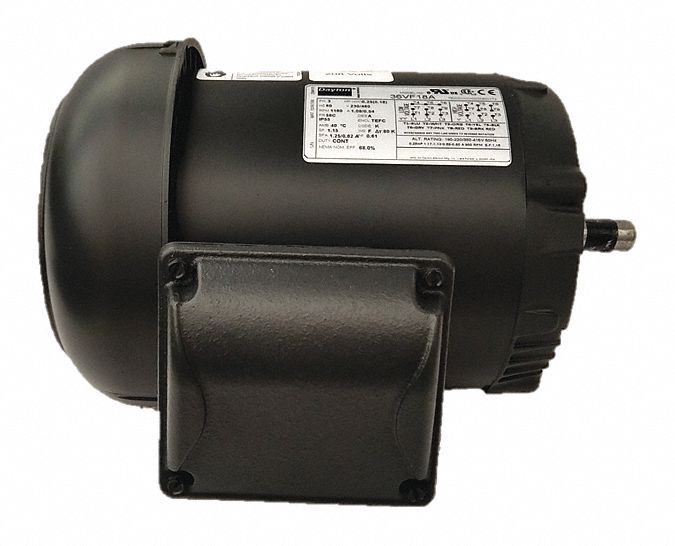

Dayton 1/4 HP, General Purpose Motor, 3-Phase, 1160 Nameplate RPM, 230/460 Voltage, 56C Frame - 36VF18

DaytonSKU: C2776967
MPN : 36VF18
Weight : 24.1 lb


$275.48 $335.95

Availability : Usually Ships in 3-5 Business Days

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1/4; Nameplate RPM: 1160; Frame: 56C; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 1/0.55; No. of Speeds: 1; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Length Less Shaft: 9 9/32 in; Overall Length: 11 1/8 in; Motor Shaft Design: Keyed; Standards: CE, CSA, UL; Duty: Continuous; Motor Efficiency Group: Standard Efficient; Nominal Efficiency: 68 %; Inverter Rated: Yes; Manufacturers Warranty Length: 1 yr; Green Environmental Attribute: Product Contributes To Reducing Energy Consumption

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Nameplate RPM1160
Full Load Amps1/0.55
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft9 9/32 in
Overall Length11 1/8 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
Motor Efficiency GroupStandard Efficient
Nominal Efficiency68 %
Inverter RatedYes
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
