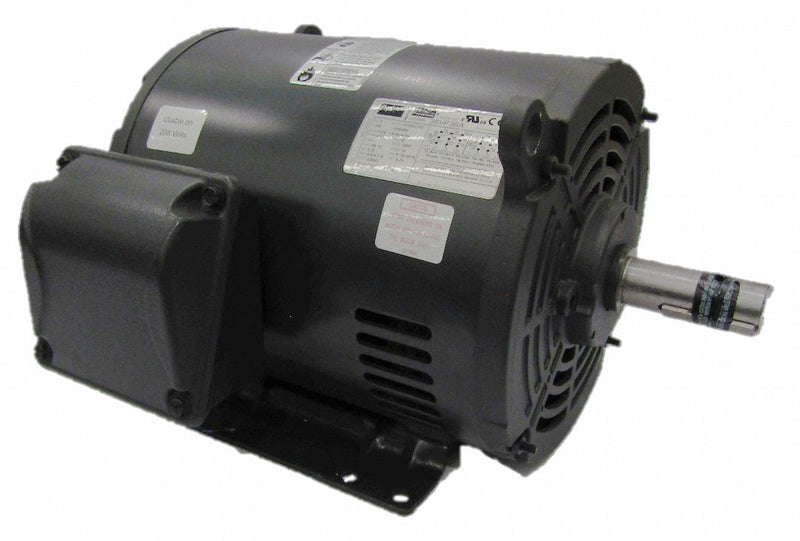

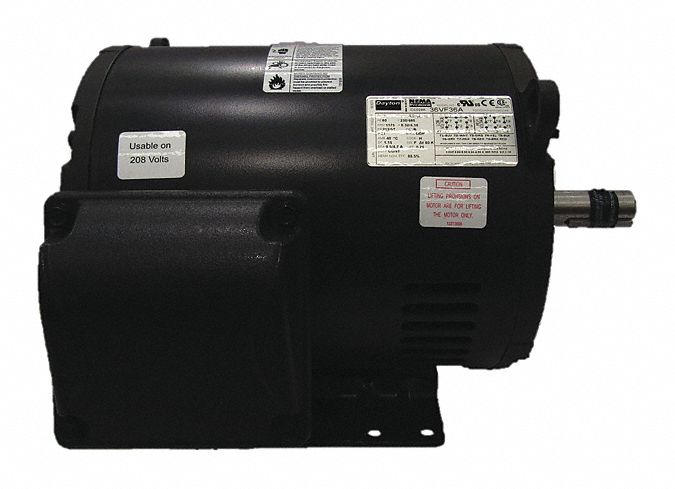

Dayton 3 HP, General Purpose Motor, 3-Phase, 1175 Nameplate RPM, 230/460 Voltage, 213/5T Frame - 36VF36

DaytonSKU: C2979605
MPN : 36VF36
Weight : 121.0 lb

filler

Price:
$1,134.10 $1,829.20

Availability : Usually Ships in 3 Business Days

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 3; Nameplate RPM: 1175; Frame: 213/5T; Voltage: 230/460; Hz: 60; Phase: 3; Full Load Amps: 8.3/4.1; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 3/8 in; Shaft Length: 3 3/8 in; Length Less Shaft: 13 3/16 in; Overall Length: 16 5/8 in; Motor Shaft Design: Keyed; Standards: UL, CSA, CE; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 88.5 %; CC Number: CC029A; Inverter Rated: Yes; Includes: Conduit Box; Manufacturers Warranty Length: 1 yr; Green Environmental Attribute: Product Contributes To Reducing Energy Consumption; Green Certification or Other Recognition: NEMA Premium(R) Rated

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP3
Nameplate RPM1175
Frame213/5T
Voltage230/460
Hz60
Phase3
Full Load Amps8.3/4.1
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Length Less Shaft13 3/16 in
Overall Length16 5/8 in
Motor Shaft DesignKeyed
StandardsUL, CSA, CE
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency88.5 %
CC NumberCC029A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
